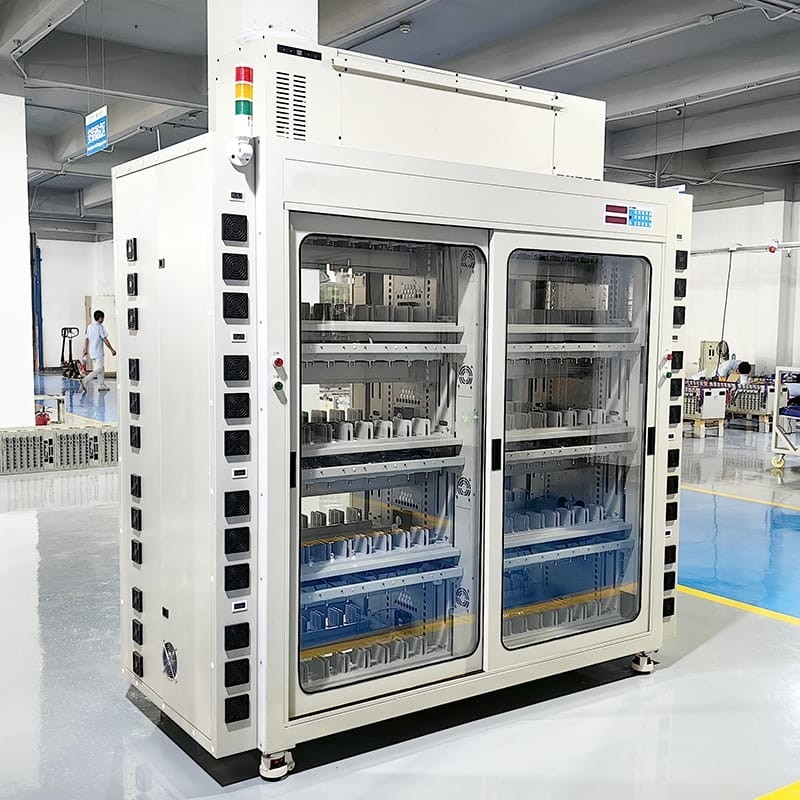

Battery Forming And Grading Machine Equipment Capacity Tester Analyzer
  • Name

Battery Forming And Grading Machine Equipment Capacity Tester Analyzer

Brand Name: XWELL
Model Number: XW-64
MOQ: 1pcs
Price: USD 7900/pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Place Of Origin:
China
Supply Ability:
10000 Set/Sets Per Month
Voltage And Current:
5V/10A; 5V/20A; 5V/30A
Heat Dissipation:
To Enter The Air Naturally And Exhaust The Air Upward
Overall Energy Saving:
Over 70%
Voltage Measuring Range:
0-5V, 1MV Resolution
Battery Voltage Range:
Charge 0-4.5V: Discharge 4.5-2V
Voltage Accuracy:
±(1‰ Reading +1‰ Full)
Control Mode:
Computer Connection Equipment Work, FCL Control
Supply Ability:
100 pcs per month
Highlight:

Capacity Tester Grading Machine

,

Analyzer Grading Machine

Product Description
Battery Forming And Grading Machine Equipment Capacity Tester Analyzer




Equipment Structure

Number of Equipment Channels: 192 channels in total

Overall Dimension: 1620(W)*900(D)1840(H)mm

Chassis Color: Standard off white (customizable)

Fixture Form: Quick clip

Fixture Spacing: 40mm

Supporting Battery Specification:32130,32150

Working Power Supply: Three phase five wire AC380V±10%,50HZ

Working Power Consumption: ≤16KW

Working Environment: Temperature 0-40 ℃, relative humidity ≤ 80%

Heat Dissipation Mode: Natural air inlet and upward exhaust





Software Function

Control Mode: Software installation, computer connection, equipment work, whole cabinet control
Communication Mode: Serial port, baud rate 57600
Process Setting: Up to 32 steps and 256 cycles can be set
Charging Mode: Constant current, constant voltage, constant current and constant voltage
Charging Cut-off Conditions: Voltage, current, time, capacity.
Discharge Mode: Constant current
Discharge Cut-off Conditions: Voltage, time, capacity
Protection Function: over voltage, under voltage, over current, under current,over capacity protection, power-off protection, data breakpoint recovery.


Product Specification

Working power Three-phase five-wire system AC380V±10%, 50HZ
Work environment Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation to enter the air naturally and exhaust the air upward
Overall energy saving over 70%
Channel Parameter
Voltage measuring range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
voltage accuracy ±(1‰ reading +1‰ full)
Current accuracy ±(1‰ reading +1‰ full)
Software Function
Control mode Computer connection equipment work, FCL control
Communication mode RS485 baud rate 57,600
Process set A maximum of 32 work steps and 256 cycles are se
Charging mode Constant current, constant pressure
Charging cutoff condition Voltage, current, time, capacity
Discharge constant current
Discharge cut-off condition Voltage, time, capacity
Defensive function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range Set it anywhere from 0 to 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤3S
Minimum frequency of data recording ≤5S
Battery sorting By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams



Battery Forming And Grading Machine Equipment Capacity Tester Analyzer



Battery Forming And Grading Machine Equipment Capacity Tester Analyzer



XWELL can provide different fixtures for different types of cells



Battery Forming And Grading Machine Equipment Capacity Tester Analyzer

Battery Forming And Grading Machine Equipment Capacity Tester Analyzer
