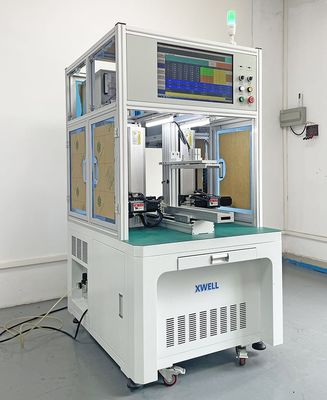

Lithium Ion Battery Fully Automatic Double Side Pack Battery Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Marketing Type: | Ordinary Product | Core Components: | PLC, Motor |
|---|---|---|---|
| User Interface: | Touch Screen | Power Source: | 5000A / 8000A / 10000A Optional |
| Efficiency: | 3800pcs/h | Equipment Stroke: | 500*350 (mm) About 760 18650 Cells |
| Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) | Operating System: | Embedded System + Man - Machine Screen |
| Transmission Mode: | Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw) | ||
| Highlight: | Lithium Ion Battery Spot Welding Machine,Fully Automatic Spot Welding Machine |
||
Product Description
Lithium Ion Battery Fully Automatic Double Side Pack Battery Spot Welding Machine
Product Description
MD-ADW is suitable for battery pack double-sided spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. The operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Product Advantages
*Support breakpoint start, automatic start, and manual start.
*Cold solder joint and sealing off alarm.
*Easy program, support matrix, array and point program, can store 100 group parameters.
*Welding needle abrasion alarm.
*Build-in welding current monitor, can display real time welding current.
*Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
lithium battery packs spot welding.
*Can be matched with the production line of lithium battery group.
*Can store dozens process of different battery packs product, switching products without re-setting parameters.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
