18650 Cylindrical Lithium Battery Spot Welding Machine For Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Key Selling Points: | Easy To Operate |
|---|---|---|---|
| User Interface: | Touch Screen | Power Source: | 5000A / 8000A / 10000A Optional |
| Efficiency: | 3800pcs/h | Equipment Stroke: | 500*350 (mm) About 760 18650 Cells |
| Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) | Operating System: | Embedded System + Man - Machine Screen |
| Transmission Mode: | Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw) | ||
| Highlight: | 18650 Spot Welding Machine,Battery Pack Spot Welding Machine |
||
Product Description

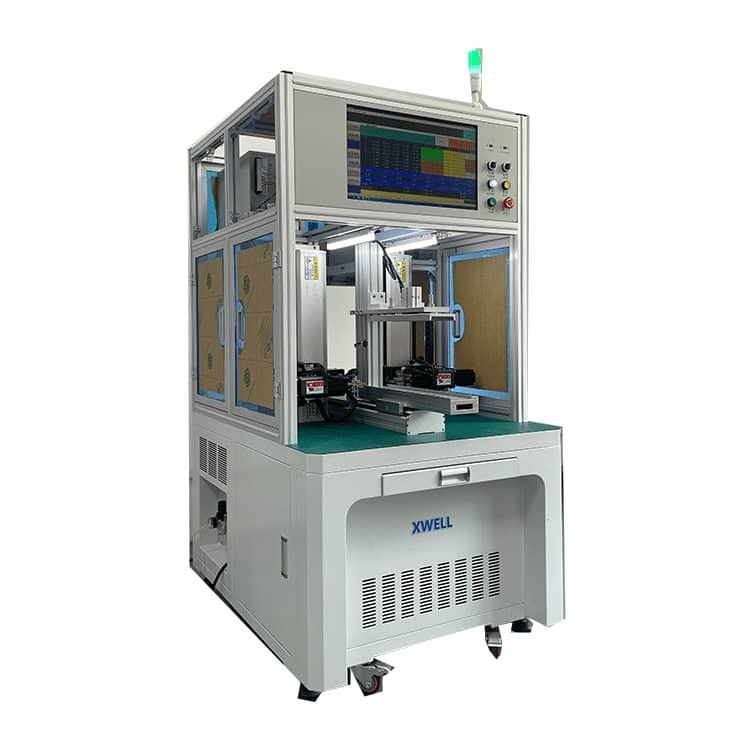

18650 Cylindrical Lithium Battery Spot Welding Machine For Battery Pack
Product Description
Double Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
The electrical control part of the spot welding machine adopts modular design, with high integration, good versatility and easy maintenance; it mainly performs the traveling mechanism is controlled by servo motor, which has high precision and good reliability; the electrical circuit of the equipment adopts domestic and foreign standards.Control components and devices are easy to maintain and replace. Supports Autocad data import, array and manual methods, which significantly improves spot welding efficiency and ensures the standardization and reliability of spot welding station production in the Pack assembly line
Product Advantages
1.R&D team has more than 20 engineers and over 10 years ofprofessionaldevelopment experience
2.The company's headquarters is located in Dongguan,Guangdong.lt has now established Zhongshan, Yangzhou,Suzhou,and Indian office.lt has always adhered to localizedservices.The company currently registered 10 million yuan inregistered funds,and there are more than 500 employees.3.Rich experience for exporting over 40 countries, haveimplemented more than 60 complete solution projectsforlithium-ion battery and super capacitor production equipmeni
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
