18650 26650 32650 Battery Pack Automatic Spot Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Core Components: | PLC, Engine, Bearing | Max. Welding Thickness: | 0.12-0.3mm |
|---|---|---|---|
| User Interface: | Touch Screen | Power Source: | 5000A / 8000A / 10000A Optional |
| Efficiency: | 3800pcs/h | Equipment Stroke: | 500*350 (mm) About 760 18650 Cells |
| Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) | Operating System: | Embedded System + Man - Machine Screen |
| Transmission Mode: | Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw) | ||
| Highlight: | 18650 Automatic Spot Welder,32650 Automatic Spot Welder,Battery Pack Automatic Spot Welder |
||
Product Description
18650 26650 32650 Battery Pack Automatic Spot Welder
Product Description
Suitable for battery connecting piece welding, hardware welding, stainlesssteel, pure nickel plate, nickel-plated plate, aluminum-nickel composite platcopper plate, steel plate, iron plate, etc., the thickness of the welding materiis0.01mm~0.15mm
Product Advantages
Transistor spot welding machine welding current rises very fast, can complete the welding process in a short time, the welding heat affected zone is small, and the welding process has no spatter. It is most suitable for ultra-precision welding, such as thin wires, such as button battery connectors, Small contacts and metal foils of relays
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

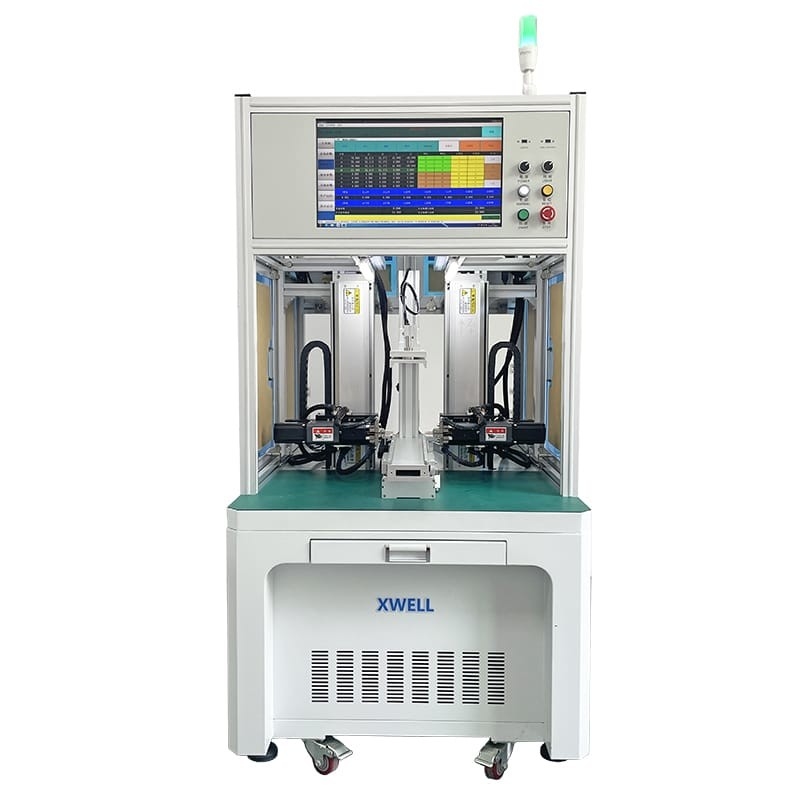

Double side spot welder details
Cylindrical battery pack welding samples
