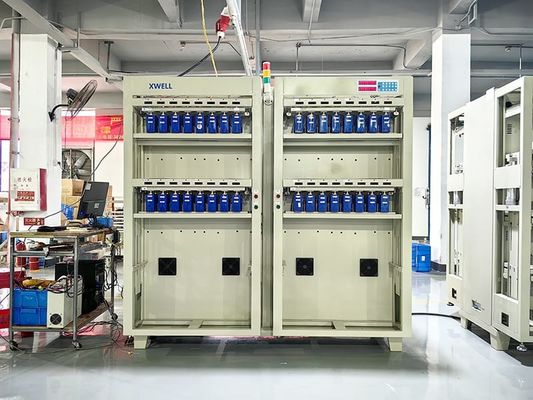

100A 64 Channel Prismatic Cell Grading Machine Battery Pack Discharge Tester Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-64 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Working Temperature: | 0~40 ℃ | Support Battery Height: | Adjustable Within 10-100mm Range |
|---|---|---|---|
| Voltage And Current: | 5V/10A; 5V/20A; 5V/30A | Heat Dissipation: | To Enter The Air Naturally And Exhaust The Air Upward |
| Overall Energy Saving: | Over 70% | Voltage Measuring Range: | 0-5V, 1MV Resolution |
| Battery Voltage Range: | Charge 0-4.5V: Discharge 4.5-2V | Voltage Accuracy: | ±(1‰ Reading +1‰ Full) |
| Control Mode: | Computer Connection Equipment Work, FCL Control | ||
| Highlight: | 64 Channel Prismatic Cell Grading Machine,Battery Pack Prismatic Cell Grading Machine,100A Prismatic Cell Grading Machine |
||
Product Description
100A 64 Channel Prismatic Cell Grading Machine Battery Pack Discharge Tester Equipment
Composition
1. Lithium battery into capacity sharing equipment.
2. Computer with USB interface (self provided).
3. USB to 485 interface converter and conmmunication line.
4. Battery scanning system.
5. Software.
Product Advantage
Product Specification
| Working power | Three-phase five-wire system AC380V±10%, 50HZ | ||
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% | ||
| Heat dissipation | to enter the air naturally and exhaust the air upward | ||
| Overall energy saving | over 70% | ||
| Channel Parameter | |||
| Voltage measuring range | 0-5V, 1MV resolution | ||
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V | ||
| Constant voltage range | 2.5V-4.5V | ||
| voltage accuracy | ±(1‰ reading +1‰ full) | ||
| Current accuracy | ±(1‰ reading +1‰ full) | ||
| Software Function | |||
| Control mode | Computer connection equipment work, FCL control | ||
| Communication mode | RS485 baud rate 57,600 | ||
| Process set | A maximum of 32 work steps and 256 cycles are se | ||
| Charging mode | Constant current, constant pressure | ||
| Charging cutoff condition | Voltage, current, time, capacity | ||
| Discharge | constant current | ||
| Discharge cut-off condition | Voltage, time, capacity | ||
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc | ||
| Time range | Set it anywhere from 0 to 30,000 minutes | ||
| Time accuracy | ≤±1‰ | ||
| Sampling inspection period | ≤3S | ||
| Minimum frequency of data recording | ≤5S | ||
| Battery sorting | By capacity, time, discharge platform, etc | ||
| Data processing | Data, graphs, and loop diagrams | ||
XWELL can provide different fixtures for different types of cells
Want to Know more details about this product
