5V 100A Prismatic Battery Charging And Discharging Tester
  • name

5V 100A Prismatic Battery Charging And Discharging Tester

Brand Name: XWELL
Model Number: XW-64
MOQ: 1pcs
Price: USD 7900/pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Constant Voltage Range:
2.5V-4.5V
Voltage Measurement Range:
DC 0~5V
Voltage And Current:
5V/10A; 5V/20A; 5V/30A
Heat Dissipation:
To Enter The Air Naturally And Exhaust The Air Upward
Overall Energy Saving:
Over 70%
Voltage Measuring Range:
0-5V, 1MV Resolution
Battery Voltage Range:
Charge 0-4.5V: Discharge 4.5-2V
Voltage Accuracy:
±(1‰ Reading +1‰ Full)
Control Mode:
Computer Connection Equipment Work, FCL Control
Supply Ability:
100 pcs per month
Highlight:

5V Discharging Tester

,

100A Discharging Tester

Product Description
5V 100A Prismatic Battery Charging And Discharging Tester


Features

Single point independence, each battery has an independent constant current and constant voltage source, which is stable without impact.

The accuracy of the equipment is 0.05% and the stability is high.

The software has powerful functions and friendly man-machine interface.

Four wire test interface to ensure high measurement accuracy.

Modular design concept, easy to maintain.

The equipment structure is mainly composed of the following parts:



Composition

1. Lithium battery into capacity sharing equipment.

2. Computer with USB interface (self provided).

3. USB to 485 interface converter and conmmunication line.

4. Battery scanning system.

5. Software.



Product Specification

Working power Three-phase five-wire system AC380V±10%, 50HZ
Work environment Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation to enter the air naturally and exhaust the air upward
Overall energy saving over 70%
Channel Parameter
Voltage measuring range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
voltage accuracy ±(1‰ reading +1‰ full)
Current accuracy ±(1‰ reading +1‰ full)
Software Function
Control mode Computer connection equipment work, FCL control
Communication mode RS485 baud rate 57,600
Process set A maximum of 32 work steps and 256 cycles are se
Charging mode Constant current, constant pressure
Charging cutoff condition Voltage, current, time, capacity
Discharge constant current
Discharge cut-off condition Voltage, time, capacity
Defensive function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range Set it anywhere from 0 to 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤3S
Minimum frequency of data recording ≤5S
Battery sorting By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams

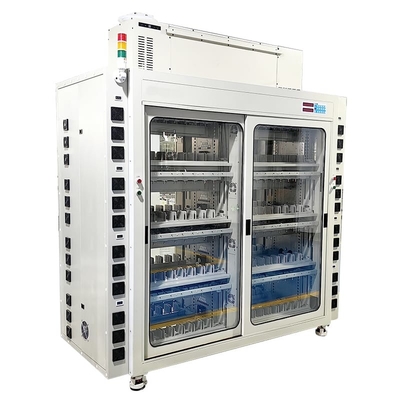

5V 100A Prismatic Battery Charging And Discharging Tester 0

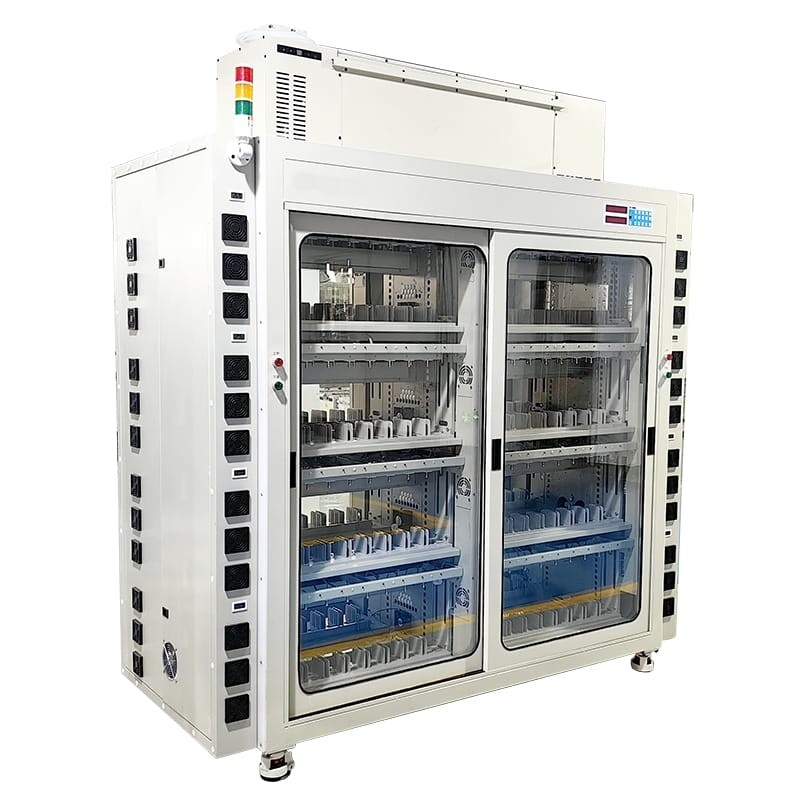

5V 100A Prismatic Battery Charging And Discharging Tester 1



XWELL can provide different fixtures for different types of cells



5V 100A Prismatic Battery Charging And Discharging Tester 2

5V 100A Prismatic Battery Charging And Discharging Tester 3
