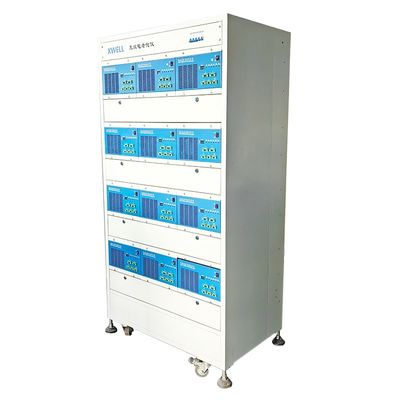

70v EV Battery Analyzer Lithium Battery Capacity Testing System
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS70-05-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Product Name: | Battery Charging&Discharging Tester |
|---|---|---|---|
| Charging Range: | 50-5000mA | Charging Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Discharge Range: | 50-10000mA | Discharge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Constant Voltage Cut-off Current: | Minimum 50mA | Discharge Power: | ≤700W |
| Inspection Time: | Real-time Collection<2S | ||
| Highlight: | Capacity Testing Battery Analyzer,70v Battery Analyzer,Lithium Battery Analyzer |
||
Product Description
70V EV Battery Analyzer Lithium Battery Capacity Testing System
Basic performance:
Input power:AC 220v+/-10%/50Hz
Voltage:10-100V
Current: charge range:0-10000mA
discharge range:0-20000mA
Charge:Min10mA
Discharge power :below 1400W
Time : Patrol time :under 5s
Timer range :0-999hours /step
Function Features:
1.with constant current and constant voltage charging function .
2.with constant current discharging function .
3.By charging and discharging the battery ,the charge protection and discharge protection of the battery can bedetected.
4. Charging and discharging the battery,record the charge capacity and discharge capacity of battery.
We assure you that we can offer you favorable prices, high quality products, and the most satisfactory service and also provide customers with a complete set of solutions in components. We have high-quality management team. High-level technical team and a group of well-trained, skilled workers. We have established friendly cooperation relationship with customers in many countries.
Product Specification
| Technical Parameter | ||
|
Input Power Supply |
Measuring Range | 7-70V |
| Accuracy | ±(0.2% of reading +0.2% of range) | |
|
Current
|
Charging Range | 50-5000mA |
| Charging Accuracy | ±(0.2% of reading +0.2% of range) | |
| Discharge Range | 50-10000mA | |
| Discharge Accuracy | ±(0.2% of reading +0.2% of range) | |
| Charge | Constant Voltage Cut-off Current | Minimum 50mA |
| Capacity | Accuracy | ±1% |
| Power | Discharge Power | ≤700W |
| Time | Inspection Time | Real-time Collection<2S |
| Timing Range | 0-999h/step | |
| Data Recording Interval | ≥5S | |
| Middle Machine Version | 1:1 series | |
| Number of Passages Per Cabinet | 12 channels, four rows and three column | |
|
Charge
|
Charging Mode | Constant Current and Constant Voltage Charging |
| Cut-off condition | Voltage, Current, Relative Time, Overcharge Protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, Relative Time and Over-discharge Protection | |
| Loop | Cyclic measurement range | 1-999 times |
| Single cycle step number | 100 | |
| Voltage and Current Detection Sampling | Four-wire sampling | |
| Data Base | Using SQL database to manage test data | |
| Upper computer communication mode | Based on TCP/IP Protocol/Serial Port | |
| Data Output Mode | EXCEL/TXT/Chart | |
| Communication Interface | Mesh port | |
| Chassis dimensions | 300x450x170mm | |
| Cabinet size | 900x600x1900mm | |
| Spatial Dimension of Discharge Battery | 900x600x130mm | |
