70V5A10V Lithium Battery Charging Discharging Life Cycle Testing Machine Battery Aging Tester For Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS70-05-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Function: | 70V5A10A | Testing Range: | 0-70V |
|---|---|---|---|
| Power Supply: | AC220V 50Hz | Charging Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Discharge Range: | 50-10000mA | Discharge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Constant Voltage Cut-off Current: | Minimum 50mA | Discharge Power: | ≤700W |
| Inspection Time: | Real-time Collection<2S | ||
| Highlight: | Charging Cycle Testing Machine,Discharging Cycle Testing Machine,Battery Aging Tester Cycle Testing Machine |
||
Product Description
70V5A10V Lithium Battery Charging Discharging Life Cycle Testing Machine Battery Aging Tester For Battery Pack
Basic performance:
70V5A10V Lithium Battery Charging Discharging Life Cycle testing machine Battery Aging Tester for battery pack
Equipment introduction:
Serial port connection mode: If the instrument is single or less than 3, it can be connected to the PC through the serial port, which can reduce the complexity of using the instrument.
♦Network connection mode: If there are more than 3 instruments, the network connection mode can be used. The PC computer only needs to provide a network port to control less than 60 instruments.
♦Control system: The software system of the aging instrument adopts the classic and mature C/S mode, and the communication mode is serial port and network.
♦Management software: Based on Windows operating system, using SQL database to store test data, which greatly facilitates the staff to query and export data online. According to the battery bar code, time, and device number, you can view the charge and discharge aging curve, and you can
♦Network connection mode: If there are more than 3 instruments, the network connection mode can be used. The PC computer only needs to provide a network port to control less than 60 instruments.
♦Control system: The software system of the aging instrument adopts the classic and mature C/S mode, and the communication mode is serial port and network.
♦Management software: Based on Windows operating system, using SQL database to store test data, which greatly facilitates the staff to query and export data online. According to the battery bar code, time, and device number, you can view the charge and discharge aging curve, and you can
Product Specification
| Technical Parameter | ||
|
Input Power Supply |
Measuring Range | 7-70V |
| Accuracy | ±(0.2% of reading +0.2% of range) | |
|
Current
|
Charging Range | 50-5000mA |
| Charging Accuracy | ±(0.2% of reading +0.2% of range) | |
| Discharge Range | 50-10000mA | |
| Discharge Accuracy | ±(0.2% of reading +0.2% of range) | |
| Charge | Constant Voltage Cut-off Current | Minimum 50mA |
| Capacity | Accuracy | ±1% |
| Power | Discharge Power | ≤700W |
| Time | Inspection Time | Real-time Collection<2S |
| Timing Range | 0-999h/step | |
| Data Recording Interval | ≥5S | |
| Middle Machine Version | 1:1 series | |

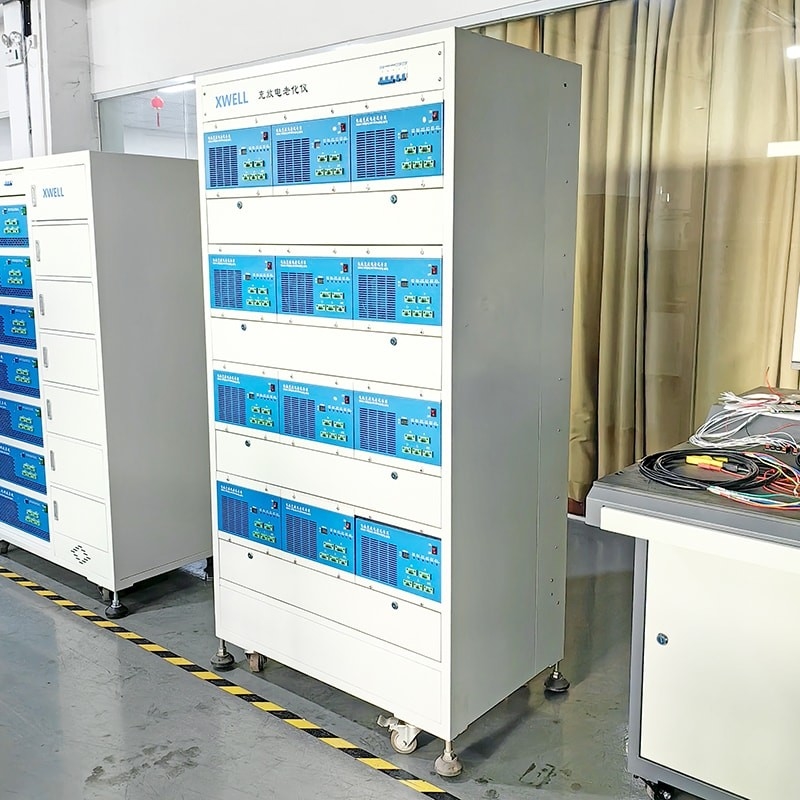

| Number of Passages Per Cabinet | 12 channels, four rows and three column | |
|
Charge
|
Charging Mode | Constant Current and Constant Voltage Charging |
| Cut-off condition | Voltage, Current, Relative Time, Overcharge Protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, Relative Time and Over-discharge Protection | |
| Loop | Cyclic measurement range | 1-999 times |
| Single cycle step number | 100 | |
| Voltage and Current Detection Sampling | Four-wire sampling | |
| Data Base | Using SQL database to manage test data | |
| Upper computer communication mode | Based on TCP/IP Protocol/Serial Port | |
| Data Output Mode | EXCEL/TXT/Chart | |
| Communication Interface | Mesh port | |
| Chassis dimensions | 300x450x170mm | |
| Cabinet size | 900x600x1900mm | |
| Spatial Dimension of Discharge Battery | 900x600x130mm | |
