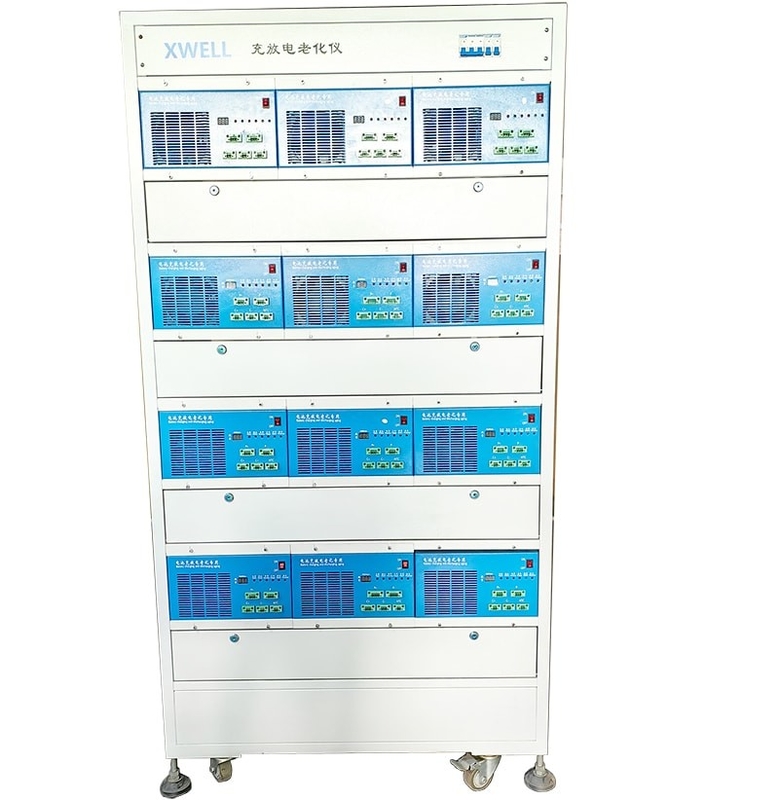

Cylinder 70V 5A Charge 10A Discharge Battery Pack Charge And Discharge Aging Machine

Brand Name:	XWELL
Model Number:	BCDS70-05-10
MOQ:	1pcs
Price:	USD 2000/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Test Range:

70V

Power Supply:

AC220V 50Hz

Charging Range:

50-5000mA

Charging Accuracy:

±(0.2% Of Reading +0.2% Of Range)

Discharge Range:

50-10000mA

Discharge Accuracy:

±(0.2% Of Reading +0.2% Of Range)

Constant Voltage Cut-off Current:

Minimum 50mA

Discharge Power:

≤700W

Inspection Time:

Real-time Collection<2S

Supply Ability:

100 pcs per month

Highlight:

10A Discharge Aging Machine

70V Discharge Aging Machine

5A Discharge Aging Machine

Product Description

Cylinder 70V 5A Charge 10A Discharge Battery Pack Charge and Discharge Aging Machine

Basic performance:

♦Charging function: with constant current and constant voltage charging function
♦Discharge function: with constant current discharge function
♦Charge and discharge interface: fully meet the requirements of the same port and separate port for charging and discharging the battery pack, that is, 2 wires (P+ P-) and 3 wires (P+ P- C-), and can age the positive electrode to protect the negative plate from discharging Protection type power tool battery (CH+ P+ P-)
♦Check voltage protection: by charging and discharging the battery, can check whether the battery's charge protection and
discharge protection work.
♦Record the charge and discharge capacity: charge and discharge the battery, and record the charge and discharge capacity of the battery.

Equipment introduction:

The Battery Pack Charge and Discharge Aging Machine is mainly used for the charge and discharge cycle test of the finished lithium battery.

The test items include: battery charge protection voltage, discharge protection voltage, battery capacity, etc.;

the equipment has 4 test steps of charging, discharging, shelving, and cycling. You can make the battery test in accordance with the set process.

Product Specification

Technical Parameter
Input Power Supply	Measuring Range	7-70V
	Accuracy	±(0.2% of reading +0.2% of range)
Current	Charging Range	50-5000mA
	Charging Accuracy	±(0.2% of reading +0.2% of range)
	Discharge Range	50-10000mA
	Discharge Accuracy	±(0.2% of reading +0.2% of range)
Charge	Constant Voltage Cut-off Current	Minimum 50mA
Capacity	Accuracy	±1%
Power	Discharge Power	≤700W
Time	Inspection Time	Real-time Collection<2S
	Timing Range	0-999h/step
Data Recording Interval	≥5S
Middle Machine Version	1:1 series
Number of Passages Per Cabinet	12 channels, four rows and three column
Charge	Charging Mode	Constant Current and Constant Voltage Charging
Charge	Cut-off condition	Voltage, Current, Relative Time, Overcharge Protection
Discharge	Discharge mode	Constant current discharge
	Cut-off condition	Voltage, Relative Time and Over-discharge Protection
Loop	Cyclic measurement range	1-999 times
	Single cycle step number	100
Voltage and Current Detection Sampling	Four-wire sampling
Data Base	Using SQL database to manage test data
Upper computer communication mode	Based on TCP/IP Protocol/Serial Port
Data Output Mode	EXCEL/TXT/Chart
Communication Interface	Mesh port
Chassis dimensions	300x450x170mm
Cabinet size	900x600x1900mm
Spatial Dimension of Discharge Battery	900x600x130mm
