Single Sided Spot Welding Machine For Lithium Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Marketing Type: | Ordinary Product | Key Selling Points: | Easy To Operate |
|---|---|---|---|
| Rated Capacity: | Customizable | Core Components: | Pressure Vessel, Gear |
| Weight Support: | 0-35KG | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V And 380V |
| Highlight: | Lithium Battery Spot Welding Machine,Single Sided Welding Machine,Lithium Battery Welding Machine |
||
Product Description
Single Sided Spot Welding Machine For Lithium Battery
Battery Spot Welding Machine Description
MD-ASW is used for 18650, 26650, 32650 cylinder battery pack automatic spot welding, it can weld both side together with high efficiency.
Battery Spot Welding Machine Features
1.Version:0.9 StartHTML:0000000105 EndHTML:0000003358 StartFragment:0000000141 EndFragment:0000003318This full-automatic machine isdesignated for welding in a consistent direction. Its double-sided simultaneous welding
design improves the work efficiency without the necessity to make sacrifice on the performance.
and control the needles. Needle repair ;Needle grinding alarm; Staggered Welding Function
Battery Spot Welding Machine Application
1. Battery industry: battery caps, battery nickel sheets, battery tabs, battery lead-out pieces, button battery welding. It is used for welding of polar plates, negative pins and busbars of various batteries (Ni-MH, Ni-Cd, Li-ion batteries).
2. Automobile and motorcycle accessories, hardware industry: suitable for various terminals and wire harness welding, enameled wire welding, terminal and copper sheet, nickel sheet welding, automobile connection wire and other precision wire harness welding, micro-motor motor lead wire welding.
3. Electronics and electrical components industry: silver contacts on various switches, lead wires and gold-sprayed surfaces, between electronic pins, between soft wires and soft wires, copper wires and resistor pins, capacitor pins, LED lights Welding of electronic pins such as pins, socket pins, plugs, etc.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

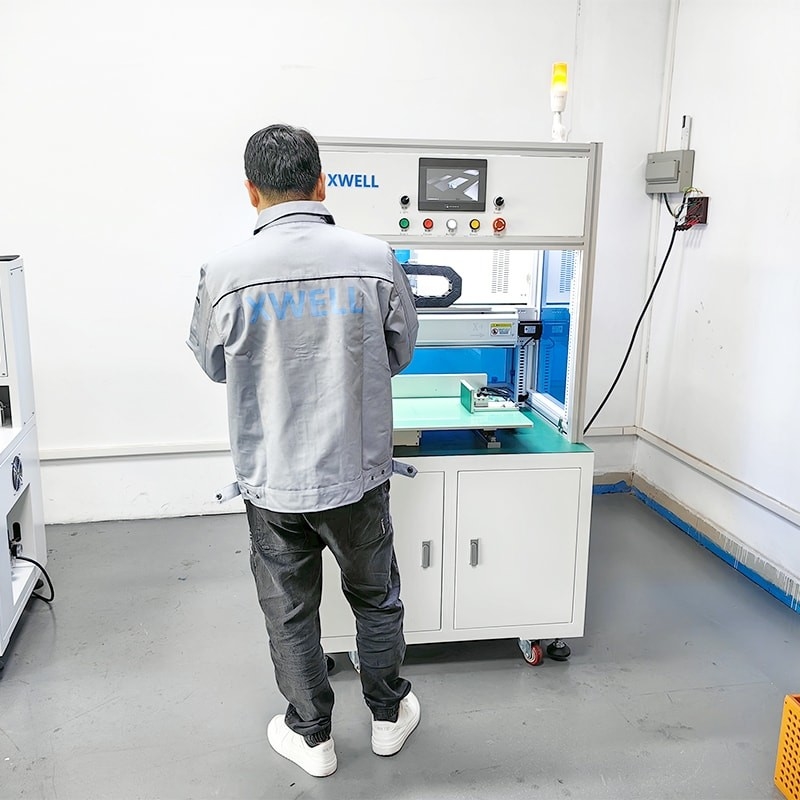

Single Side Spot Welding Machine Details
