5 Channel Cylinder Battery Automatic Sorter Battery Cell Sorting Machine For Lithium Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Marketing Type: | Ordinary Product |
|---|---|---|---|
| User Interface: | Computer Software | Cell Type: | Cylindrical Cell 32140 33138 33140 |
| Working Speed: | 3000 Pcs/h | Voltage Supply: | 220V±10%/50Hz±10% |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | Tester: | HK3561 |
| Highlight: | 5 Channel Automatic Sorter,5 Channel Battery Cell Sorting Machine,Cylinder Battery Cell Sorting Machine |
||
Product Description
5 Channel Cylinder Battery Automatic Sorter Battery Cell Sorting Machine For Lithium Battery Pack
Cell Soritng Machine Description
XW-BS05 is suitable for automatic sorting of large and medium-sized cylinders batteries.Can automatically sort the batteries according to the specified requirements, fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process.
Cell Sorting Machine Working Principle
The device measures the voltage resistance of the battery through a voltage internal resistance tester.
The voltage internal resistance parameters of four gears are set by man-machine interface. The voltage internal resistance of the core is tested by PLC and judged by the parameters. The battery grade is obtained. The sorting cylinder is controlled by PLC to send the battery to the corresponding receiving gears.
Cell Sroting Machine Features
Has the characteristics of rapid and accurate sorting, improves the quality and efficiency of battery sorting.
*Touch screen operation, easy and fast responding.
*Automatically sort the voltage and internal resistance of cylindrical batteries.
*The process detection signal is comprehensive and diverse.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |

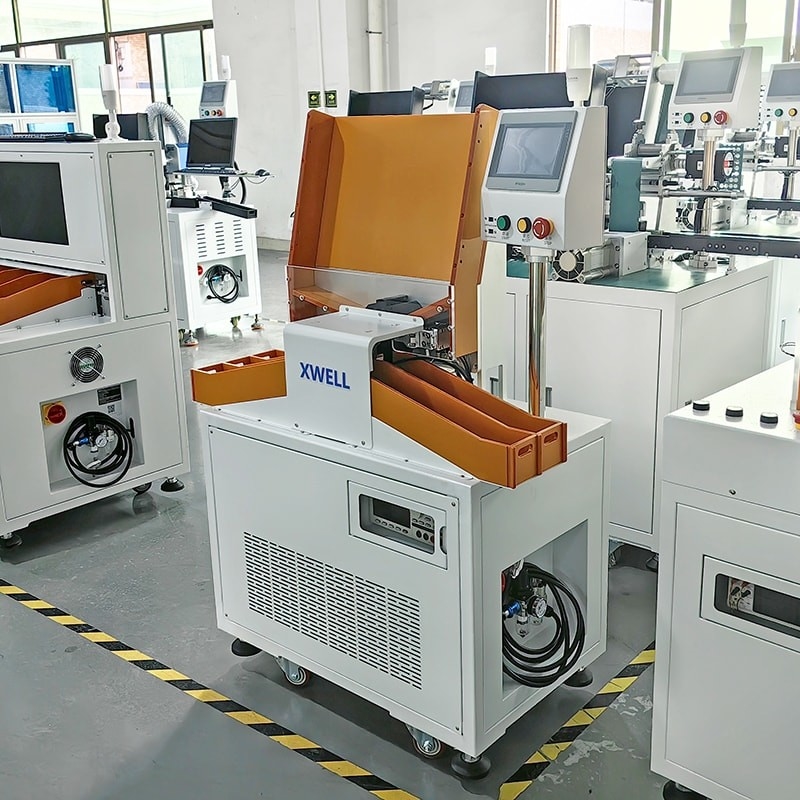

Cell Sorting Machine Details
