Battery Cell Sorting Machine

18650 Battery Sorting And Grading Machine For Lithium Ion Battery Pack 5 Channel Cylindrical Cell Selector

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

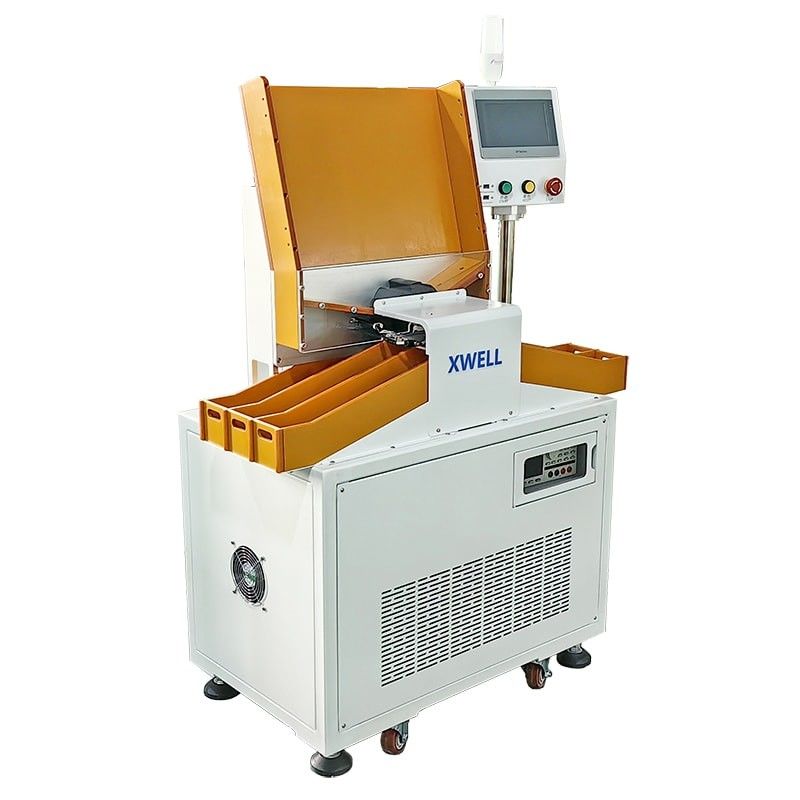

18650 Battery Sorting And Grading Machine For Lithium Ion Battery Pack 5 Channel Cylindrical Cell Selector

Brand Name:	XWELL
Model Number:	MD-BS11
MOQ:	1pcs
Price:	USD 3000 - 7900 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Channel:

Sorting Parameters:

Open Circuit Voltage And AC Internal Resistance

Internal Resistance Tester:

HK3561 Or HIOKI3561

Air Compressor:

Optional

After Warranty Service:

Online Support

Battery Types:

18650(other Sizes Available)

Receiving Channel:

4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value.

Test Parameters:

AC Internal Resistance, DC Voltage

AI.Set Function:

Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack.

Size:

L960mm*W540mm*H1350mm

Supply Ability:

100 pcs per month

Highlight:

18650 Battery Sorting And Grading Machine

Ion Battery Sorting And Grading Machine

Product Description

5 Channel Cylindrical Cell Selector Battery Sorting and Grading Machine Sorter For Lithium Ion Battery Pack

Product Description

1)18650/26650/32650/21700 li-ion batteries test & sorting machine.

2)Used for factories automatic production in power banks, laptops and ebikes.

3) Test about 5000pcs batteries per hour.

0-1 worker to operate the machine, fast and with great efficiency.

Can be connected to other machines to work automatically.

4) Touch screen operation, easy and fast responding.

5) Customers can set the voltage and internal resistance by themselves.

Customization

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products

Product Features

Product name	Auto sorting machine
Model No.	MD-BS11
Voltage Supply	single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types	18650(other sizes available)
Receiving channel	4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters	AC internal resistance, DC voltage
Internal resistance test	Test range: 80mΩ,
	Accuracy: ±0.5%rdg
	Display resolution: 0.01mΩ
Voltage test	Test range: 8V
	Accuracy :±0.015%rdg,
	Display resolution: 0.01mV
Sorting speed	80ppm
AI.Set function	Intelligent one-button setting, specially designed for new functions of battery pack.
Size	L960mmW540mmH1350mm
Weight	<150Kg

Sorting machine structure

18650 Battery Sorting And Grading Machine For Lithium Ion Battery Pack 5 Channel Cylindrical Cell Selector 0
