Lithium Ion Battery IR Voltage Sorting Equipment Automatic 8 Channel

Brand Name:	XWELL
Model Number:	XW-BPS08
MOQ:	1pcs
Price:	USD 10000 - 15000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Channel:

8

Internal Resistance Tester:

HK3561 Or Hioki3561

Input Voltage:

AC220V/50Hz

Test Parameter:

AC Internal Resistance, Open DC Voltage

Power:

<1000W

Efficiency:

600 Pcs/h

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

Battery IR Voltage Sorting Equipment

,

8 Channel IR Voltage Sorting Equipment

Product Description

Automatic 8 Channel Lithium-Ion Battery IR Voltage Sorting Equipment

Prismatic Battery Cell Sorting Machine Features

1. Products with high precision internal resistance,Voltage,automatic test system.

2. The device is set according to the settings Internal resistance voltage,

3. Accurate delivery of cores to designated gears.

4. Hopper put in 500 pcs High production efficiency easy to operate.

5. Stick Barley paper 4200pcs/Hour high stability.

6. Can be docked with automatic veneer cushion machine,Saving labor.

Prismatic Battery Cell Sorting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Prismatic cells
Receiving Channel	8 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	600 pcs/h
Weight	<300KG
Dimension	2250mm(L)1200mm(W)1630mm(H)
Tester	HK3561, BT3562
Productivity	600 pcs/h

Prismatic Battery Cell Sorting Machine Details

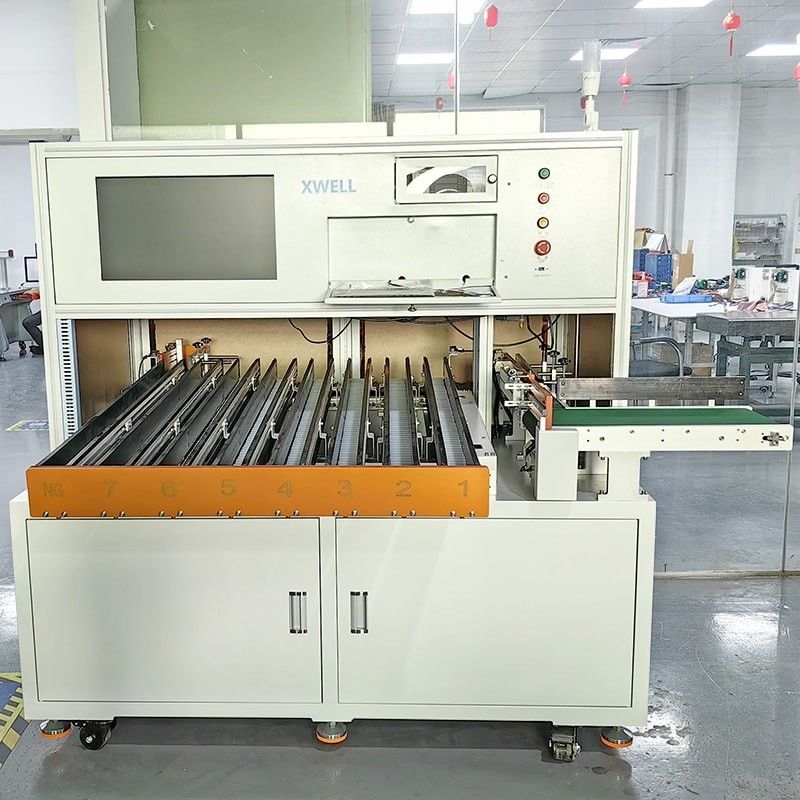

Lithium Ion Battery IR Voltage Sorting Equipment Automatic 8 Channel 0

Lithium Ion Battery IR Voltage Sorting Equipment Automatic 8 Channel 1
