8 Channel Prismatic Cell Sorting Machine Battery Precision Voltage Internal Resistance Measuring Instrument
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Application Fields: | Battery | Machinery Function: | Sorting |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 Pcs/h |
| Test Parameter: | AC Internal Resistance, Open DC Voltage | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | 8 Channel Prismatic Cell Sorting Machine,Precision Prismatic Cell Sorting Machine |
||
Product Description
8 Channel Battery Precision Voltage Internal Resistance Measuring Instrument Prismatic Cell Sorting Machine
Characteristics:
*High degree of automation, simple operation, hopper feeding, simple operation, about 600 electric cores can be tested and assembled per hour, which can effectively improve production efficiency and reduce production costs.
*The performance data of the electric core tested by the system shall be managed by the database, which shall be kept for a long time with strong traceability. Cooperate with the data analysis function of the software to conduct long-term monitoring and analysis on product performance and quality to guide the improvement of R&D formula and production process.
*The industrial control computer collects the data and automatically generates the curve chart and bar chart. The system has the database function, which can trace the historical data and export it.
III. Description of equipment technical parameters
*Power supply: 220V, 0.5KW.
*Air source: 0.5 ~ 0.6 Mpa (dry air).
*Separation efficiency: ≥ 10PPM.
*Product qualification rate: ≥ 99%.
*Standby rate: ≥ 95%.
*Qualified rate of sorting: ≥ 98%.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |

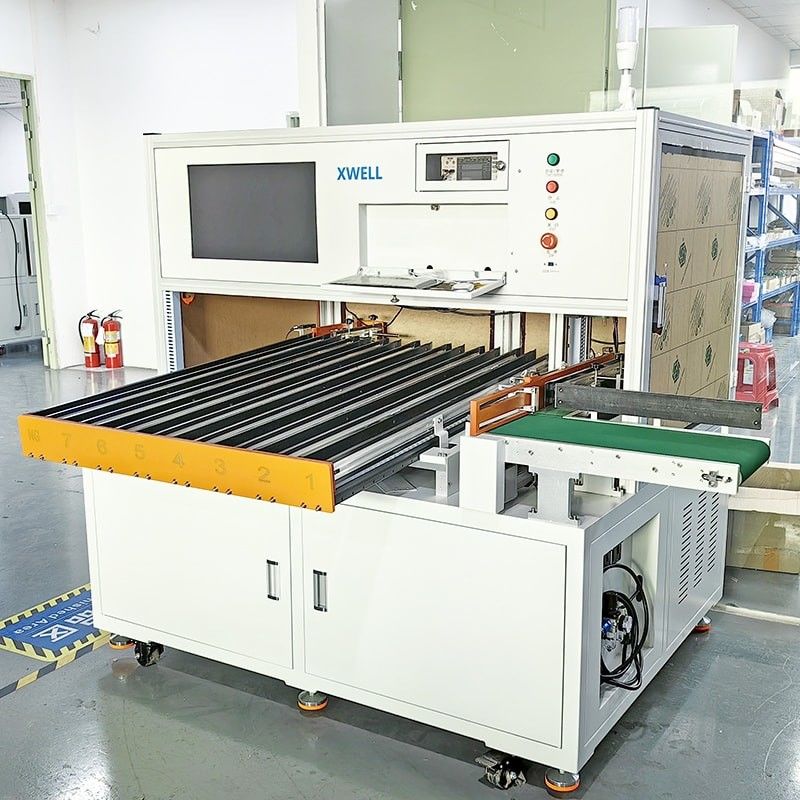

Prismatic Battery Cell Sorting Machine Details
