8000A Spot Welding Machine Single Side Automatic 18650 Lithium Battery Spot Welder Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000-12000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Machinery Test Report: | Provided | Marketing Type: | New Items 2024 |
|---|---|---|---|
| X-axis Travel: | 400 Mm | Y-axis Travel: | 400 Mm |
| Welding Current: | 5000A 8000A | Operating System: | Windows And Software |
| Transmission Mode: | Screw Rod+precision Linear Guide Rail | Max Spot Welding Rate: | 0.5S/point; 1500-1800pcs/h |
| Welding Head Spring Pressure Range: | 1.0 - 5kg | Voltage: | 220V And 380V |
| Highlight: | 8000A Spot Welding Machine,18650 Lithium Battery Spot Welding Machine |
||
Product Description

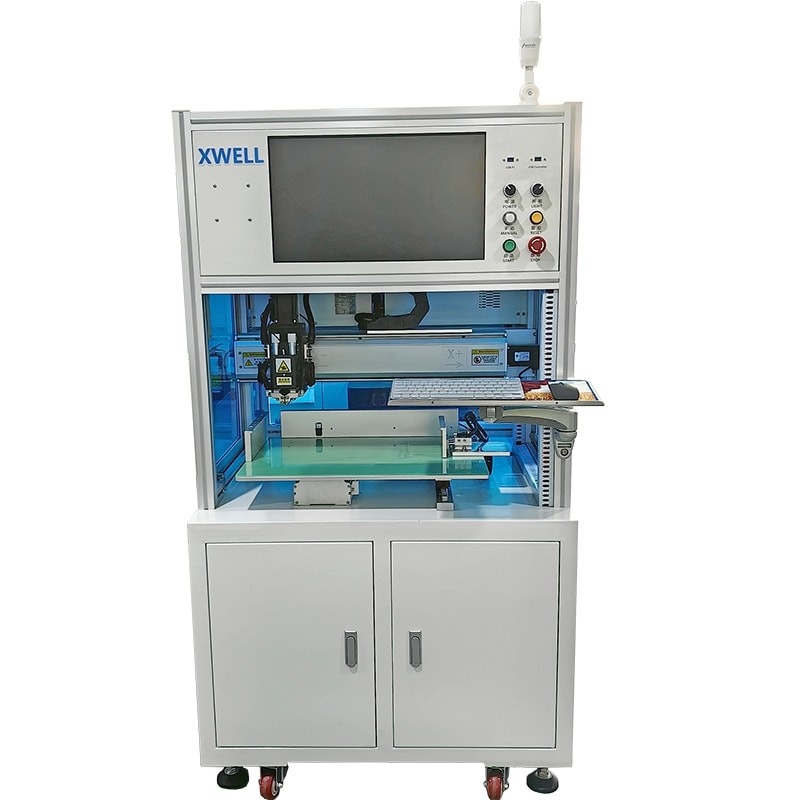

Spot Welding Machine Single Side Automatic 18650 Lithium Battery Spot Welder Machine Welding Machine
Single Side Spot Welding Machine Application
MD-ASW single Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
Single Side Spot Welding Machine Features
The electrical control part of the spot welding machine adopts modular design, with high integration, good versatility and easy maintenance; it mainly performs the traveling mechanism is controlled by servo motor, which has high precision and good reliability; the electrical circuit of the equipment adopts domestic and foreign standards.Control components and devices are easy to maintain and replace. Supports Autocad data import, array and manual methods, which significantly improves spot welding efficiency and ensures the standardization and reliability of spot welding station production in the Pack assembly line.
Single Side Spot Welding Machine Advantages
1. Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2. Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3. Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
6. The welding current will rise with the power on time to ensure the welding effect.
7. Stable control system
8. High configuration regulating device
9. High precision working procedure
10. High cost performance of products
Product Specification
|
X-axis stroke
|
400mm (customizable)
|
Operating system
|
Windows and software |
|
Y-axis stroke
|
400mm (customizable)
|
Transmission mode
|
Screw rod+precision linear guide rail
|
|
Max spot welding rate
|
0.5S/point; 1500-1800pcs/h
|
Driving mode
|
Hybrid servo motor
|
|
Max speed of motor drive
|
1000mm/S
|
Nickel welding thickness
|
0.1mm-0.3mm
|
|
Max loaded cell (18650)
|
About 500pcs (20 * 25)
|
Dimension
|
900L*900W*1750H
|
|
No. of file groups saved
|
99 groups
|
Positioning accuracy
|
±0.02mm
|
|
Weight
|
200KG
|
Horizontal bearing weight
|
15kg (OEM)
|
Main Parts List
| Name | Qty |
| X-axis module | 1 set |
| Y-axis module | 1 set |
| Welding host | 1 pcs |
| Welding head | 1 set |
| Clamping mechanism | 1 set |
| Welding mould | 1 sets |
| Computer | 1 pcs |
| Motion controller | 1 pcs |
| Servo motor | 2 sets |
| Pneumatic element | 1 set |
| Machining parts | 1 batch |
| Control system | 1 set |
| Machine frame | 1 set |
| Alarm system | 1 set |
Single Side Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack)."
