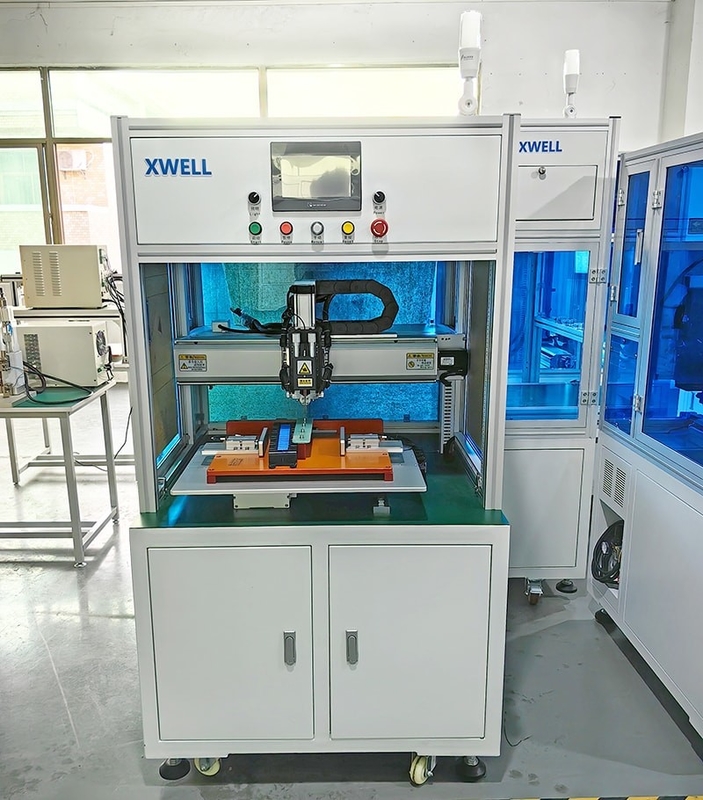

Single Side 18650 Battery Pack Spot Welder Microcomputer control Battery Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7000-8000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Keyword: | Battery Weld Equipment | Application: | Battery Industry |
|---|---|---|---|
| X-axis Travel: | 400 Mm | Y-axis Travel: | 400 Mm |
| Maximum Spot Welding Speed: | 0.3s/point | Z Axis Travel: | 50 Mm |
| Control Method: | Microcomputer Control | Spot Welding Machine: | DC Inverter Welding Machine Power Supply |
| Welding Current: | 5000A 8000A | Voltage: | 220V And 380V |
| Highlight: | 18650 Battery Pack Spot Welder,Microcomputer Control Battery Pack Spot Welder |
||
Product Description
Automatic Single Side 18650 Battery Pack Spot Welder Welding Machine
Product Description
This machine is used for 18650 battery pack automatic spot welding, it can weld both side together with high speed and good effect.
Product Features
1. Support breakpoint start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.
Product Application
With the customized fixture jig, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical battery pack, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Product Stucture
Product Specification
| Item | Parameter |
|---|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Welding range | 400*400mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300-600 pcs |
| Welding speed | Max 0.35s/spot, 2800 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Operation system | Microcomputer and touch screen user interface |
| Driver mode | Motro and precision guide rail |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 8000 W |
| Size | 900L*900W*1930Hmm |
| Weight | 300kg |
Product Details
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
