Automatic Single Side Spot Welding Machine 18650 Battery Pack Spot Welders
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000-12000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Usage: | Spot Welding | Keyword: | Welding Spot Machine |
|---|---|---|---|
| X Travel: | 400 Mm | Y Travel: | 400 Mm |
| Power Source: | 5000A Or 8000A | Operating System: | Windows And Software |
| Transmission Mode: | Screw Rod+precision Linear Guide Rail | Max Spot Welding Rate: | 0.5S/point; 1500-1800pcs/h |
| Welding Head Spring Pressure Range: | 1.0 - 5kg | Voltage: | 220V And 380V |
| Highlight: | Automatic Battery Pack Spot Welders,18650 Battery Pack Spot Welders,Single Side Spot Welding Machine |
||
Product Description

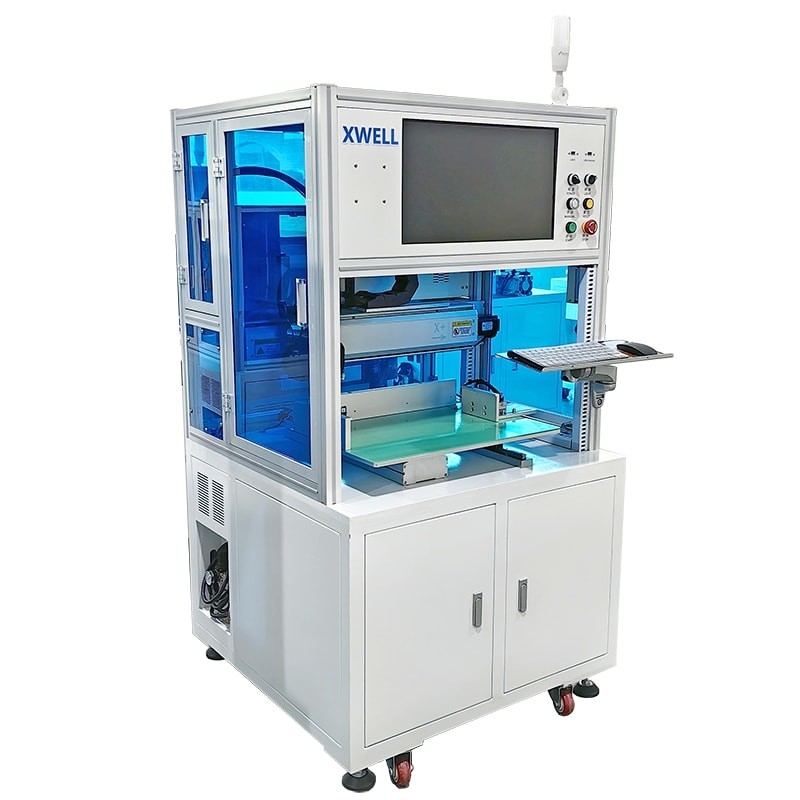

Automatic Single Side Spot Welding Machine 18650 Battery Pack Spot Welders
Single Side Spot Welding Machine
spot welding machine welding current rises very fast, can complete the welding process in a short time, the welding heat affected zone is small, and the welding process has no spatter. It is most suitable for ultra-precision welding, such as thin wires, such as button battery connectors, Small contacts and metal foils of relays
Single Side Spot Welding Machine Features
design improves the work efficiency without the necessity to make sacrifice on the performance.
Single Side Spot Welding Machine Advantages
1. Welding stroke can be customized;
2. Suitable for various kinds of battery pack;
3. High speed welding;
4. Computer with windows software, more convenient operation, clearer display;
5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality;
6. Can store up to 999 groups of files, the file is simple to call, does not require complicated line changing process;
7. One-key calibration function for total shift of solder joints, which can be calibrated for spot shift caused by changing the
solder pin or other reasons
8. Electric or pneumatic spot welding machine is optional.
Product Specification
|
X-axis stroke
|
400mm (customizable)
|
Operating system
|
Windows and software |
|
Y-axis stroke
|
400mm (customizable)
|
Transmission mode
|
Screw rod+precision linear guide rail
|
|
Max spot welding rate
|
0.5S/point; 1500-1800pcs/h
|
Driving mode
|
Hybrid servo motor
|
|
Max speed of motor drive
|
1000mm/S
|
Nickel welding thickness
|
0.1mm-0.3mm
|
|
Max loaded cell (18650)
|
About 500pcs (20 * 25)
|
Dimension
|
900L*900W*1750H
|
|
No. of file groups saved
|
99 groups
|
Positioning accuracy
|
±0.02mm
|
|
Weight
|
200KG
|
Horizontal bearing weight
|
15kg (OEM)
|
Main Parts List
| Name | Qty |
| X-axis module | 1 set |
| Y-axis module | 1 set |
| Welding host | 1 pcs |
| Welding head | 1 set |
| Clamping mechanism | 1 set |
| Welding mould | 1 sets |
| Computer | 1 pcs |
| Motion controller | 1 pcs |
| Servo motor | 2 sets |
| Pneumatic element | 1 set |
| Machining parts | 1 batch |
| Control system | 1 set |
| Machine frame | 1 set |
| Alarm system | 1 set |
Single Side Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack)."
