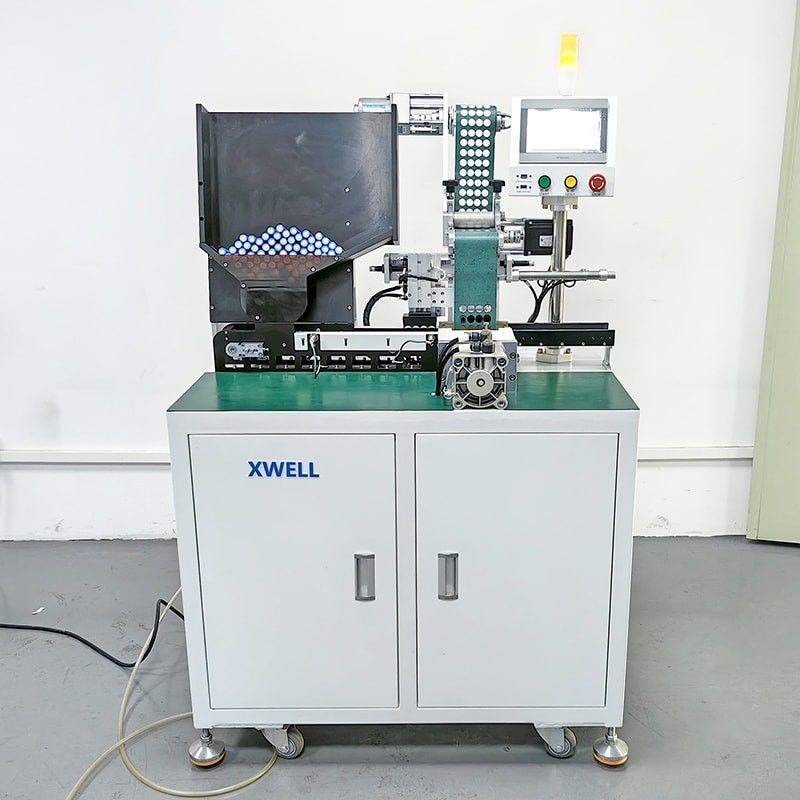

Lithium Battery Automatic Cylindrical Battery Insulation Paper Sticking / Pasting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Payment: | L/C D/A D/P T/T Western Union | Type: | Automatic |
|---|---|---|---|
| Channel: | 2-4 | Paper Size: | 100mm Paper Total Thickness:0.3mm |
| Air Pressure: | 0.4-0.8Mpa | Charging Pattern: | Put In Batteries Disposable Put In 500PCS |
| Size(L XW X H): | 1000x700x1630mm | Surfact Mat Material: | Barley Paper Or PVC |
| Highlight: | Cylindrical Battery Insulation Paper Sticking Machine,Lithium Battery Insulation Paper Sticking Machine |
||
Product Description
Lithium Battery Automatic Cylindrical Battery Insulation Paper Sticking/Pasting Machine
MD-BSM is an automatic equipment for pasting barley paper on cylindrical batteries. This equipment realizes the function of sticking highland barley paper to qualified batteries.
Features
1. Stamping cutting die non cohesive gel.
2. Tight fitting No influence on automatic spot welding.
3. Hopper put in 500pcs High production efficiency easy to operate.
4.Stick Barley paper 4800pcs/Hour high stability.
Battery Sticking Machine Specification
| oltage/Power | Single-phase 220V,50Hz, 1500W |
| Air Pressure | 0.4-0.8Mpa |
| Material Specfication | Barley paper |
| Maximum Breadth |
100mm paper Total thickness:0.3mm |
| Charging Pattern | Put in Batteries disposable put in 500PCS |
| Production Efficiency | 4800pcs/hour, single pad 4pcs |
| Size(L xW x H) | 1000x700x1630mm |
| Surfact Mat Material | Barley paper or PVC |
| Control Device |
7 inck Touch Screen PLC programming unit and stepper motor |
Battery Sticking Machine Parts
| No. | Spare Parts | Brand |
| 1 | Air Cylinder | SMC,CKD |
| 2 | Solenoid Valve | SMC,Airtac |
| 3 | Linear Guide Rail | TPI |
| 4 | Electric Relay | OMRON |
| 5 | PLC | TouchWin |
| 6 | Inductorium | OMRON,SUNX |
| 7 | Stepper Motor | Lesev/Inovance |
| 8 | Servo Motor | Fuji/Panasonic |
| 9 | Support Base | NSK |
| 10 | Lead Screw | HIWIN |
Battery sticking machine details
Battery Sticking Machine Samples
Battery Sticking Machine Package
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
Battery Sticking Machine delivery time
15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
