E Bike EV Cylinder Battery Pack Welding Machine Single Side Spot Welder With Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Warranty: | 1 Year | Electric Current: | DC |
|---|---|---|---|
| Power Form: | Automatic | Core Components: | Welder |
| Weight Support: | 0-35KG | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V And 380V |
| Highlight: | Cylinder Battery Pack Welding Machine,Touch Screen Battery Pack Welding Machine |
||
Product Description
E Bike EV Cylinder Battery Pack Welding Equipment Single Side Spot Welding Machine With Touch Screen
Application
Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.
Features
1) Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2) Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3) Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4) Easy to change from low current to high current, suitable for precision welding.
5) The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
Battery Spot Welding Machine Application
1. Battery industry: battery caps, battery nickel sheets, battery tabs, battery lead-out pieces, button battery welding. It is used for welding of polar plates, negative pins and busbars of various batteries (Ni-MH, Ni-Cd, Li-ion batteries).
2. Automobile and motorcycle accessories, hardware industry: suitable for various terminals and wire harness welding, enameled wire welding, terminal and copper sheet, nickel sheet welding, automobile connection wire and other precision wire harness welding, micro-motor motor lead wire welding.
3. Electronics and electrical components industry: silver contacts on various switches, lead wires and gold-sprayed surfaces, between electronic pins, between soft wires and soft wires, copper wires and resistor pins, capacitor pins, LED lights Welding of electronic pins such as pins, socket pins, plugs, etc.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

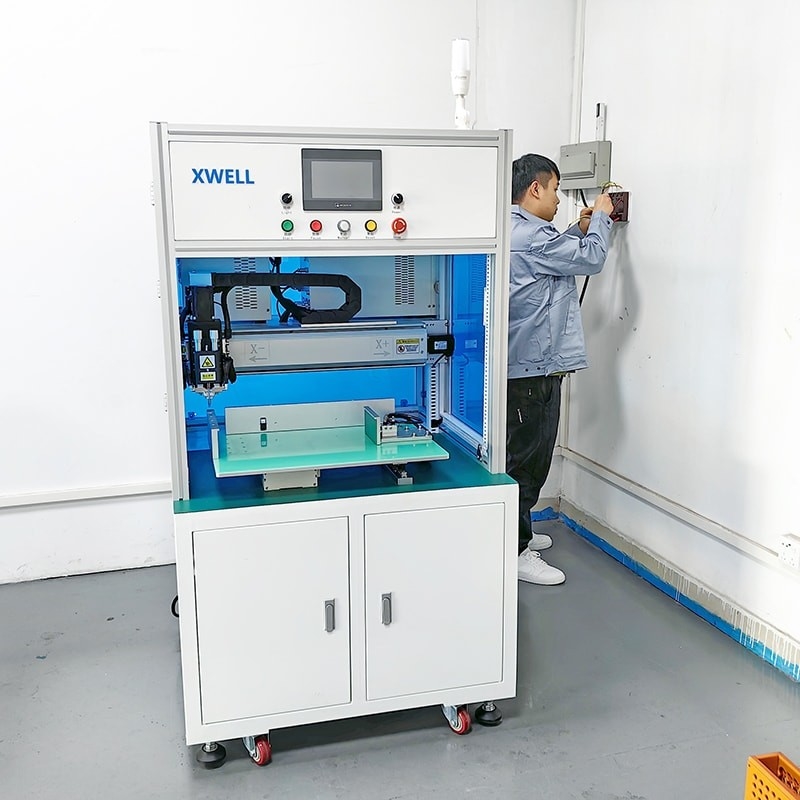

Single Side Spot Welding Machine Details
