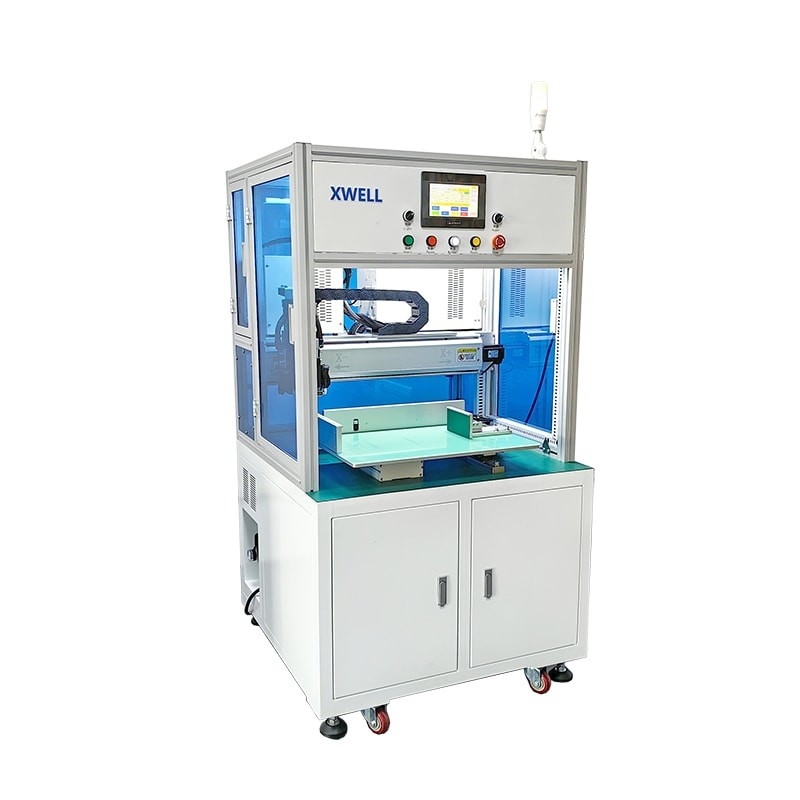

Single Side Spot Welder For 18650 21700 Lithium Cylindrical Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Core Components: | PLC, Motor |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Welding Size: | 400*400mm And Customizable |
| Weight Support: | 0-35KG | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V And 380V |
| Highlight: | Single Side Spot Welder,Cylindrical Battery Single Side Spot Welder,21700 Lithium Battery Spot Welding Machine |
||
Product Description
Single Side Spot Welder For 18650 21700 Lithium Cylindrical Battery Pack
Battery Spot Welding Machine Description
Battery pack welding sample
Battery Spot Welding Machine Features
1. Suitable for 18650, 26650…battery pack welding, like E-bike, scooter, and electromobile battery pack welding.
2. Induction load voltage, feedback mode to control the constant voltage, to achieve high-quality welding.
3. PRE HEAT, MAIN HEAT power mode, preheats before welding, to ensure a stable welding quality.
4. To maintain the continuity of energy density, welding time is short, reduce the base metal deformation and discoloration.
Battery Spot Welding Machine Application
1. Battery industry: battery caps, battery nickel sheets, battery tabs, battery lead-out pieces, button battery welding. It is used for welding of polar plates, negative pins and busbars of various batteries (Ni-MH, Ni-Cd, Li-ion batteries).
2. Automobile and motorcycle accessories, hardware industry: suitable for various terminals and wire harness welding, enameled wire welding, terminal and copper sheet, nickel sheet welding, automobile connection wire and other precision wire harness welding, micro-motor motor lead wire welding.
3. Electronics and electrical components industry: silver contacts on various switches, lead wires and gold-sprayed surfaces, between electronic pins, between soft wires and soft wires, copper wires and resistor pins, capacitor pins, LED lights Welding of electronic pins such as pins, socket pins, plugs, etc.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
