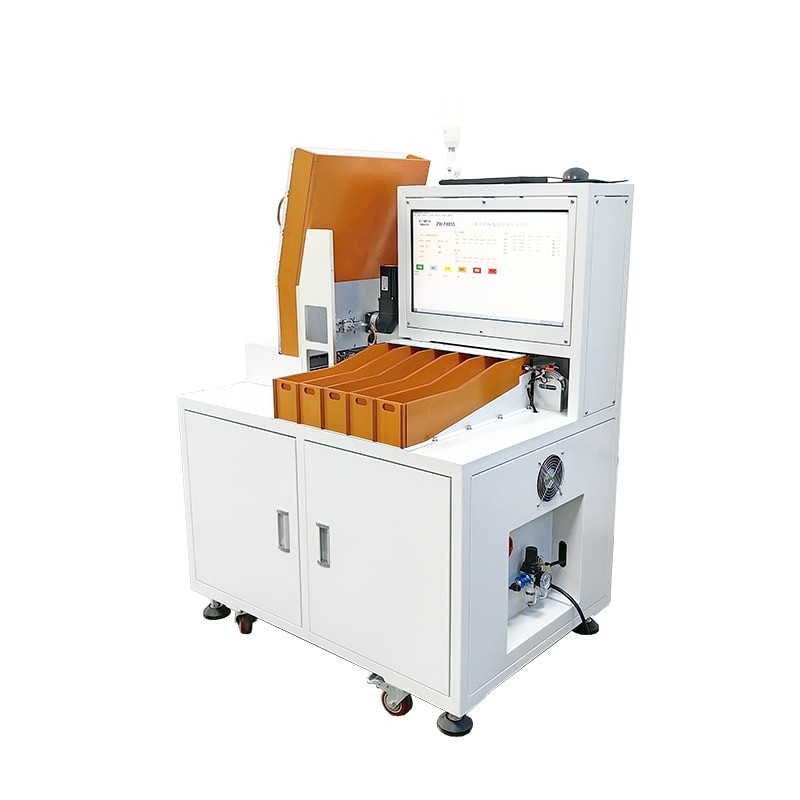

Li Ion Battery Cell Sorting Machine 5 Channel Power Battery cell Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Core Components: | PLC, Motor | Warranty: | 1 Year |
|---|---|---|---|
| Advantage: | High Efficiency Low Cost | Related Industry: | Li Ion Battery |
| Voltage Supply: | Single-phase ~220V±10%/50Hz±10%, Power <800W | Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. |
| Test Parameters: | AC Internal Resistance, DC Voltage | Sorting Speed: | 80ppm |
| AI.Set Function: | Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack. | ||
| Highlight: | Li Ion Battery Cell Sorting Machine,5 Channel Battery Cell Sorting Machine |
||
Product Description
5 channel Power Battery Testing and Sorting Machine
Product Description
- The 5 channels battery sorting machine is used for automatic sorting of battery by voltage and internal resistance with a voltage internal resistance tester.It sets the different grade in the touch screen, and shifting different grades of batteries to
different channels according to the judgment result.
This automatic sorting machine is composed of loading mechanism, testing mechanism, automatic sorting and receiving mechanism,etc.
Features:
1.Products with high precision internal resistance,Voltage,automatic test system.
2.The device is set according to the settings Internal resistance voltage,
3. Accurate delivery of cores to designated gears.
4 .Hopper put in 500 pcs High production efficiency easy to operate.
5.Stick Barley paper 4200pcs/Hour high stability. 6.Can be docked with automatic veneer cushion machine,Saving labor.
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |
Sorting machine structure
