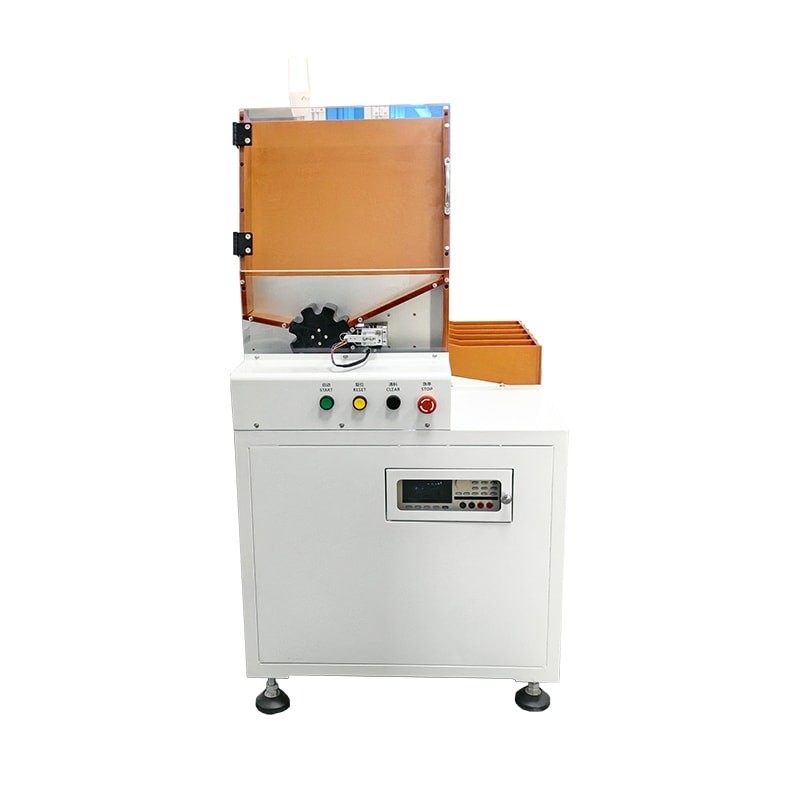

Automatic 5 Channel Battery Sorting Machine For 18650 21700 32650 Cylindrical Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | Auto Sorting Machine | Internal Resistance Tester: | HK3561 Or HIOKI3561 |
|---|---|---|---|
| Air Compressor: | Optional | After Warranty Service: | Online Support |
| Battery Types: | 18650(other Sizes Available) | Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. |
| Test Parameters: | AC Internal Resistance, DC Voltage | Sorting Speed: | 80ppm |
| AI.Set Function: | Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack. | Size: | L960mm*W540mm*H1350mm |
| Highlight: | Automatic 5 Channel Battery Sorting Machine,32650 Battery Sorting Machine,18650 Cylindrical Battery Sorting Machine |
||
Product Description
Automatic 5 Channel Battery Sorter Sorting Machine For 18650 21700 32650 Cylindrical Battery Cell
Product Description
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.
Customization
1. We can provide 5-22 channel battery sorter according to your battery productivity requirement.
2. The battery sorter can equip with a computer which can record the data of battery sortting.
3. Battery sorter is suitable for all kinds of cylindrical batteries which is a useful machine for battery pack assembly.
4. Besides battery sorter, Tmax also provide a whole line machine for battery pack assembly.
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |
Sorting machine structure
