Lithium Cylindrical Cell Case Disassembly Machine Manual Loading
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-SBP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Voltage: | AC220V | Frequency: | 50Hz |
| Air: | 0.4-0.6MPa | Speed: | 10 Pcs Per Min |
| Cell Loading: | Manual | Cell Collection: | Manual |
| Highlight: | Lithium Cylindrical Cell Case Disassembly Machine,Manual Loading Cell Case Disassembly Machine |
||
Product Description

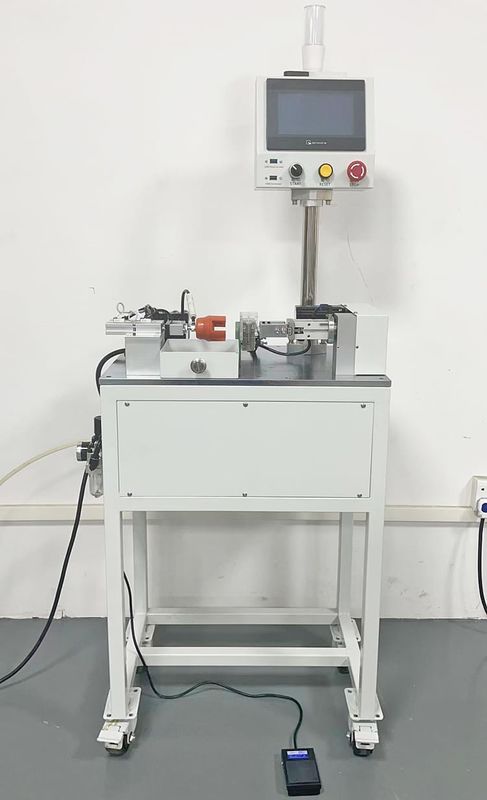

Lithium Battery Cylindrical Cell Case Disassembly Machine
|
Main features |
*Equipped with different clamps to dismantle various cylindrical batteries.
*High disassembly precision, will not hurt the cells inside the battery case.
*Easy to operate, safe and reliable, beautiful appearance
Technical parameter
*Demolition mold: standard 18650 demolition mold (other molds are optional)
*Slicing knife motor speed: 1000rpm
*Mold speed: 320rpm
Specification
| Item | Parameter |
| Name | Semi-auto cap remove machine |
| Voltage | AC220V/50Hz |
| Size | 1100*600*1500mm |
| Weight | 100kg |
| Slitting method | Knife |
| Air | 0.4-0.6MPa |
| Cell model | Cylindrical, 18650, 21700, 32650... |
| Cell loading | Manual loading |
| Cell feeding | By cylinder |
| Cell collection | Manual |
| Speed | 10 pcs/min |
| Drive | Motor |
Application
This equipment is suitable for battery distributors to replace the cell casing. Also sutiable for battery pack manufacturing replace the old over with own new cover.
