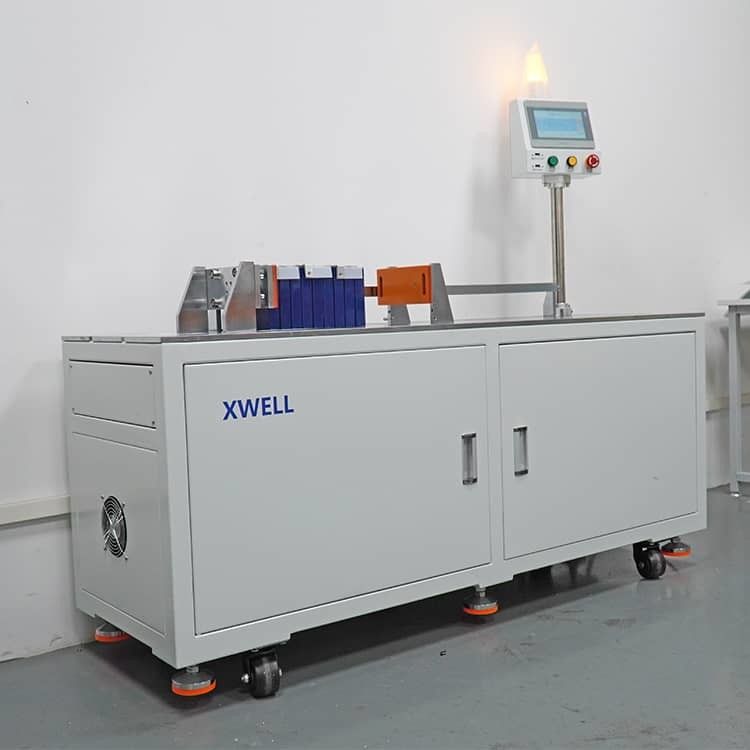

Layer By Layer Prismatic Cell Stacking Machine Automatic 0.01mm Position Accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-PC10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability: | 100 pcs/month |
|
Detail Information |
|||
| MOQ: | 1pcs | Compliance: | CE |
|---|---|---|---|
| Control System: | PLC | User Interface: | Touch Screen Software |
| Driver: | Servo Motor | Transmission: | Bearings And Screw |
| Presssure Measure: | High Prcession Pressure Sensor | Position Accuracy: | 0.01mm |
| Highlight: | Automatic Prismatic Cell Stacking Machine,0.01mm Position Accuracy Cell Stacking Machine |
||
Product Description
Automatic Prismatic Cell Layer By Layer Stacking Machine
Stacking machine description
Stacking machine is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.
Stacking machine features
PLC Touch Screen Control allows easy condition setting
· Continuous "Z" fashion stacking with a separator
· Auto electrode pick-up & stacking via vacuum suction manipulator
· Adjustable mechanical fixture for accurate electrodes positioning
· Unreeling rotors for separator film feeding
· Auto-tension control for separator film delivery
Stacking machine specification
| Item | Name | Parameter |
| 1 | Model | XW-PC10 |
| 2 | Max travel | 1000mm |
| 3 | Control system | PLC |
| 4 | User interface | Touch screen software |
| 5 | Driver | Servo motor |
| 6 | Transmission | Bearings and screw |
| 7 | Pressure measure | High precession pressure sensor |
| 8 | Position accuracy | 0.01mm |
| 9 | Pressure accuracy | 0.1kg |
| 10 | Power supply | AC220V/50Hz |
| 11 | Power | 2KW |
| 12 | Size | 1500*500*1500mm |
| 13 | Weight | 200kg |
Stacking machine details
