Battery Pack Testing Machine

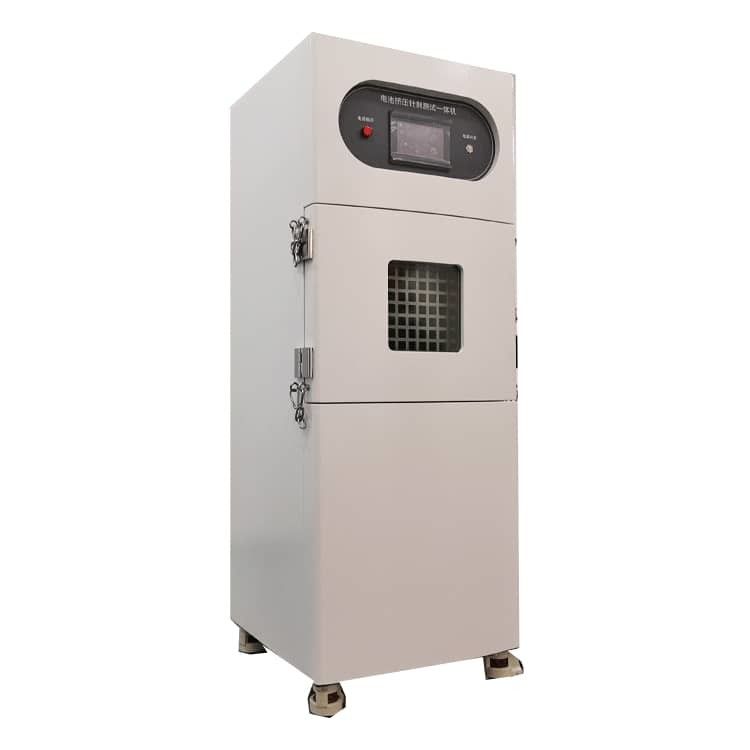

20kN Battery Pack Testing Machine Lithium Battery Extrusion Needle Punch Servo Motor Drive

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

20kN Battery Pack Testing Machine Lithium Battery Extrusion Needle Punch Servo Motor Drive

Brand Name:	XWELL
Model Number:	XW-6012C
MOQ:	1 PCS
Price:	USD4500-5000/PCS
Packaging Details:	Wooden box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

XW-6012C

Origan:

Guangdong

300x300x300mm (length X Width X Height):

Force Range:

1~20kN(adjustable)

Warranty:

1 Year

Supply Ability:

100 pcs per month

Highlight:

20kN Battery Pack Testing Machine

Lithium Battery Pack Testing Machine

Product Description

Lithium Battery Extrusion Needle Punch

Introduction:

1. For cylindrical batteries, the longitudinal axis of the extruded battery should be parallel to the two plates of the extrusion device

2. For square and pouch batteries, only the wide surface of the battery is extruded

Extrusion Parameters:

1 .Extrusion degree: the extrusion pressure reaches 13+0.78kN, and it can be stopped when the maximum value is reached

Extrusion Parameters:

1.Drive mode: servo motor drive

2.Force range:1~20kN(adjustable)

3 Force measurement accuracy: 01%

4.Unit conversion: kg, N Ib

5 Extrusion stroke: 300mm

6.force value display: PLC touch screen display

7. Batterv extrusion head: standard extrusion head, area 220cm²

Specifications:

NO	Item	Parameter
1	Test space	300x300x300mm (length x width x height)
2	Force range	1~20kN(adjustable)
3	Extrusion stroke	300mm
4	Box material	inner box stainless steel, outer box cold-rolled steel plate spray treatment
5	Features	The rear side of the box is designed with exhaust vent and pressure reliefdevice, and the box is equipped with lighting
6	Steel needle	3mm 5mm high temperature resistant tungsten steel needle,ength of100mm (can be specified)
7	tinerary	200mm
8	Clampable battery distance	200mm
9	Unit conversion	Kg,N, LB
10	Needle punching speed	10~40mm/s(adjustable)
11	Needle prick force value	1~300Kg
12	Force value display	PLC touch screen display
13	Data acquisition	1 channel each for voltage and battery temperatureservo
14	Drive mode	motor control stroke adjustable, speed adjustable box bodymaterial: iner box stainless steel, outer box cold-rolledsteel plate
