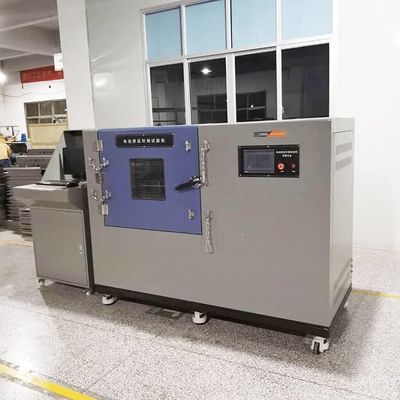

Power Battery Extrusion Needle Punch Integrated Machine 17KW 450mm Electric Axis Stroke
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-6012D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Device Power: | ≤17KW | Device Weight: | Approx. 2.3T |
|---|---|---|---|
| The Device Uses Power: | AC380V | Warranty: | 1 Year |
| Electric Axis Stroke: | ≥450mm | Sensor Resolution Force: | 3/10000 |
| Highlight: | Power Battery Needle Punch Integrated Machine,17KW Battery Needle Punch Integrated Machine |
||
Product Description
Power Battery Extrusion Needle Punch Integrated Machine For Lithium Battery
Introduction:
Battery extrusion needlepunch integrated machine is to simulate thesituation of various types of power batteries being squeezed or needledduring the use, transportation and storage and use, artificially presentingthe different conditions that may occur when the battery is subjected tostrong external force extrusion or sharp object puncture
Equipment principle:
The battery extrusion needle punch machine places the battery between twoextrusion plates and applies pressure to the squeezed battery, shorting theinside of the battery. When the voltage between the two poles of the batterydrops to zero or close to zero, it automatically returns to the position, or thebattery is deformed to 30% of the original size to stay for a period of time, orthe extrusion force reaches a certain set value, and it is automatically returnedand the three modes are judged according to the standard after the completionof the three mode tests.
Specification:
| NO | Item | Parameter |
| 1 | The name of the category | Technical parameters |
| 2 | Equipment structure | Vertical type (can be customized according to battery specifications as horizontal model.) |
| 3 | Drive mode | Electric axis drive |
| 4 | Control mode | Remote control + touch screen + computer |
| 5 | Maximum extrusion force | 100KN |
| 6 | Effective test space | Width 500mm * depth 500mm * height 500mm about width |
| 7 | Inner box size | Width 500mm * depth 500mm * height 500mm about width |
| 8 | Electric axis stroke | ≥450mm |
| 9 | Running speed | extrusion 0.1-6mm/s adjustable |
| 10 | acupuncture 0.1-80mm/s adjustable | |
| 11 | Sensor resolution force | 3/10000 |
| 12 | The force value shows the accuracy | 0.01N |
| 13 | Extrusion force control accuracy | ±0.5%FS |
| 14 | Force units | KGF, N, KN switchable |
| 15 | Displacement accuracy | Extruded ≤± 0.5mm |
| 16 | Needling≤± 0.1mm | |
| 17 | Hold time | It can be set within 0-29999s |
| 18 | Temperature | Temperature acquisition range:0-1200℃ |
| 19 | Humidity collection channel:2 Channel | |
| 20 | Temperature acquisition accuracy:≤±1℃ | |
| 21 | Resolution:0.1℃ | |
| 22 | Acquisition frequency:≤10ms |
Details:
