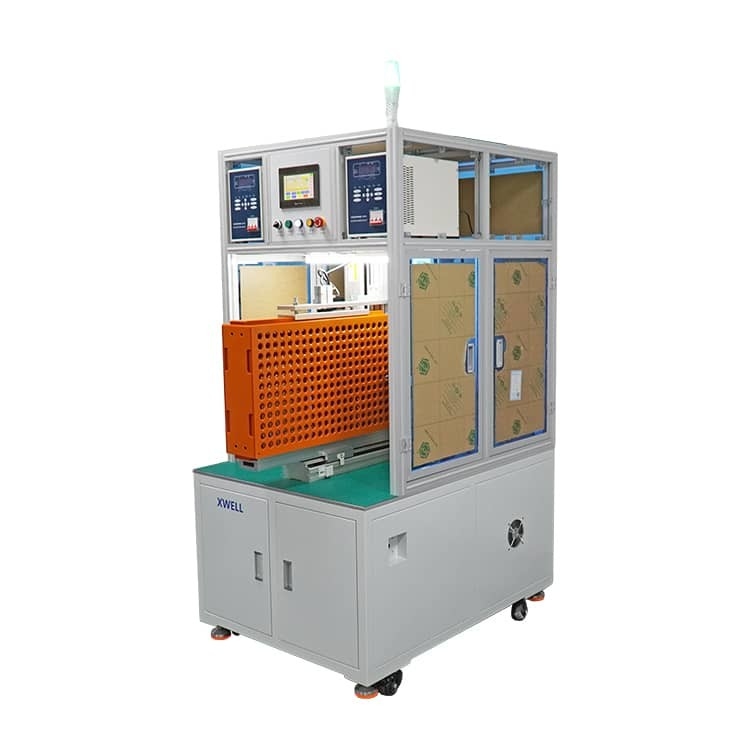

18650 26650 32650 21700 Battery Spot Welding Machine Adjustable Pulse Width
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Welding Equipment, New Energy | Showroom Location: | China |
|---|---|---|---|
| Pack Size: | X Direction: 26; Y Direction: 26 | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | 21700 Battery Spot Welding Machine,Adjustable Pulse Battery Spot Welding Machine,26650 Battery Pack Welding Machine |
||
Product Description
Automatic Double Side 18650 26650 32650 21700 Battery Spot Welding Welder Machine
Equipment introduction:
● Self-developed electric precision rotating welding head, can be rotated 135° for welding, suitable for all kinds of irregular nickel, with anti-sticking needle effect.
Performance characteristics:
1, welding voltage locking technology to prevent network voltage fluctuations affect welding current.
2, the welding pulse width is adjustable, the welding splash is small, the welding spot does not change color.
3, with two sections of current detection and comparison function, abnormal current sound and light alarm, effectively prevent the appearance of false welding phenomenon.
4, with fault self-diagnosis function, display the corresponding fault point, easy maintenance.
5, the use of motion control card embedded programming module, only need to calibrate a starting point coordinates, input X, Y axis number, spacing, you can automatically generate the welding head movement trajectory and save in the system file, programming is simple and easy to learn.
6, in the system can store 99 groups of welding procedures and parameters, replace the product only to adjust the energy, call out the program. The welding head can be pneumatic, electric and rotary.
Battery Spot Welding Machine Specification
| Model No. | MD-AW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
