Dual Sided Pure Electric Automatic Spot Welder 5000A 8000A for Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Retail, Energy & Mining, Other | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Pack Size: | X Direction: 26; Y Direction: 26 | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | Dual Sided Automatic Spot Welder,Battery Pack Automatic Spot Welder,8000A Battery Pack Welding Machine |
||
Product Description

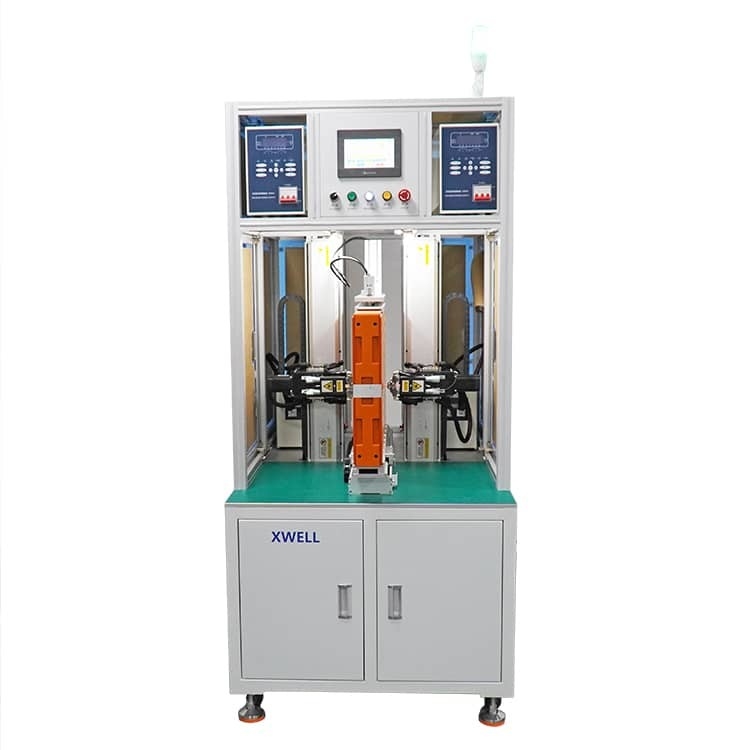

Double Sided Pure Electric Automatic Spot Welder
Equipment introduction:
This device is mainly used for manual welding of battery and nickel-plated steel strip or nickel strip in cylinder/polymer battery combination, and ensures that the welding tension between battery and nickel-plated steel strip or nickel strip is ≥30N. It is mainly used for spot welding of moulded lithium battery pack such as electric motorcycle/electric vehicle/solar street lamp.
Advantages:
1.The machine can be equipped with rotary welding head, which is not easy to stick the welding electrode. It is also suitable for the welding of special-shaped battery pack.
2.Electric model of machine can effectively prevent false welding and explosion welding caused by unstable air pressure.
3.Welding pressure: the pressure of two welding electrodes is adjusted independently, with the functions of counting the number of times of use of welding electrodes, alarming and clearing.
4.Machine has the functions of origin reset and breakpoint continuous welding, that is, in case of shutdown caused by abnormal problems in the process of spot welding, you can choose to return to the origin or continue welding from the breakpoint, with the function of regional repair welding.
Battery Spot Welding Machine Specification
| Model No. | MD-AW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
