CNC Spot Battery Pack Welding Machine Fully Automatic 4000W

Brand Name: XWELL
Model Number: MD-ADW
MOQ: 1pcs
Price: USD 6000 - 9000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Core Components:
Engine
Place Of Origin:
Guangdong, China
Key Selling Points:
Automatic
Pack Size:
X Direction: 26; Y Direction: 26
Welding Current:
5000A 8000A
Voltage:
220V/380V(AC)
Power:
4000 W
Supply Ability:
100pcs per month
Highlight:

CNC Spot Battery Pack Welding Machine

,

Fully Automatic Battery Pack Welding Machine

Product Description

Battery Pack Fully Automatic CNC Spot Welding



Features:

1 ,For 18650 battery. Mobile power and other standardized production.

2 , Simple operating system, 7.5-inch color touch screen, user-friendly design, easy to understand.

3 , Control system: PLC programming control, with fault alarm system.

4 , Cooling device comes with solder pin and prolong life.

5 , X-axis and Y-axis ball screw design, the stepper motor driven.



Technical Parameters:

model: TWSL-700

Power supply : 220V,50HZ 3.6Kw

Use pressure : 0.3-0.8Mpa

X Module travel : 0-350MM maximum 18 cores

Y Module travel : 0-135MM maximum 7 core

X-axis emission number of batteries : 18PCS within

Y-axis discharge batteries Number : Within 7 lines

Dimensions: L1300 * W750 * H1300MM

Machine weight : 150KG


Battery Spot Welding Machine Specification



Model No. MD-AW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply double-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa

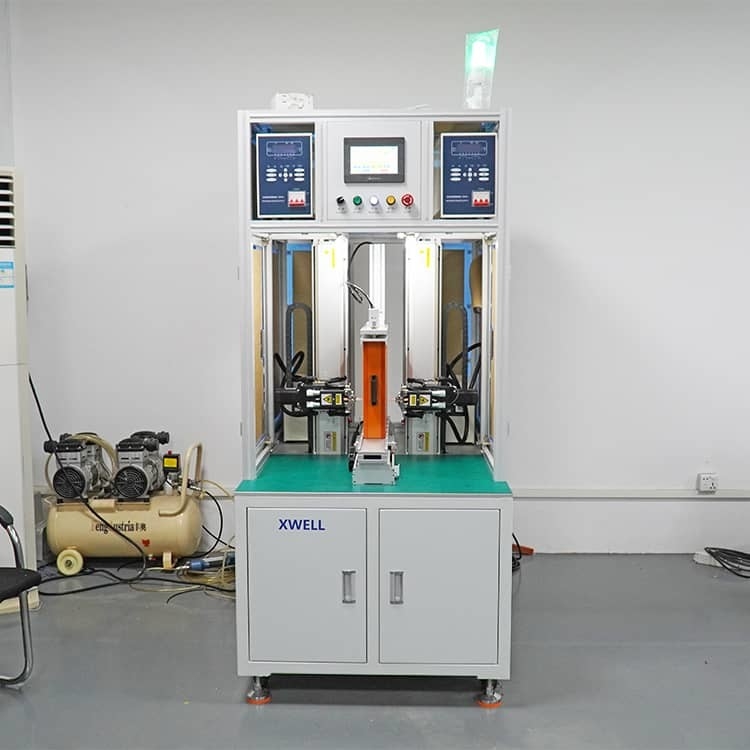

Double Side Spot Welding Machine Details

CNC Spot Battery Pack Welding Machine Fully Automatic 4000W 0

CNC Spot Battery Pack Welding Machine Fully Automatic 4000W 1CNC Spot Battery Pack Welding Machine Fully Automatic 4000W 2
