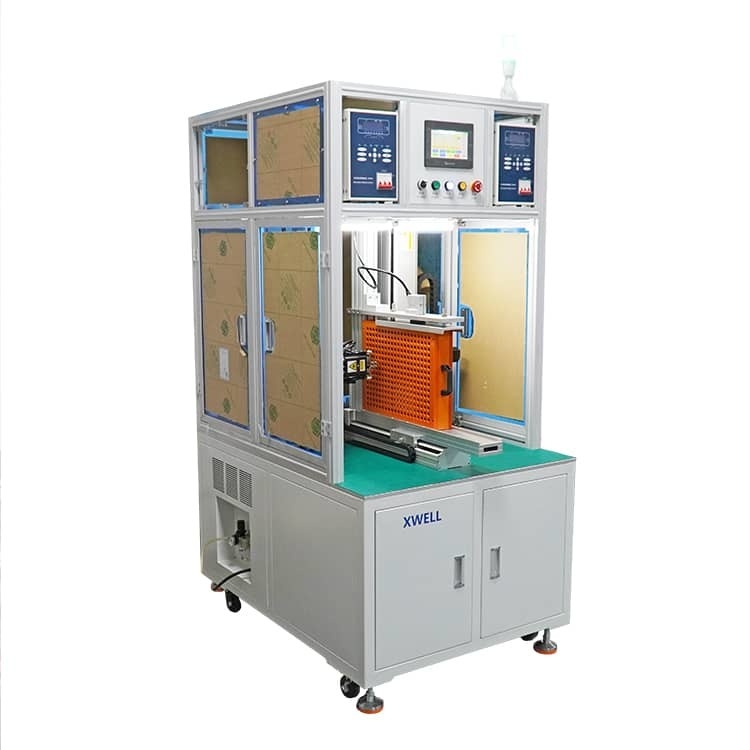

Automatic Double Side Lithium Battery Spot Welding Machine 18650 Fault Self Diagnosis
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining | Machinery Test Report: | Provided |
|---|---|---|---|
| Key Selling Points: | Automatic | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | 18650 Battery Spot Welding Machine,Self Diagnosis Battery Spot Welding Machine |
||
Product Description
Automatic Double Side Lithium Battery Spot Welding Machine 18650 Spot Welding For Battery
Product Specification
1. The welding voltage locking technology prevents the network voltage fluctuation from affecting the welding current;
2. Adjustable welding pulse width, small welding spatter, welds color no changing.
3. Two sections current monitoring and comparing function, abnormal current sound and light alarm, effectively preventing the rosin joint.
4. Fault self-diagnosis function, display the corresponding fault points,convenient maintenance.
5. Motion control card embedded programming module, automatically generate the welding pole movement track and save it in the system file through inputing the space and group number after
Features
1) Suitable for all cylindrical cells, like 18650, 21700, 26650, 32650 … battery pack welding; widely application area, like
E-bike, scooter, and electro mobile battery pack welding.
E-bike, scooter, and electro mobile battery pack welding.
2) 5000A/8000A inverter spot welding power supply (optional), high quality welding effect.
3) Servo motor driving, fast, stable welding.
4) Support breakpoint start, automatic start, and manual start.
5) Cold solder joint and sealing off alarm.
6) Easy program, support matrix, array and point program, can welding for any shape and store 99 group parameters.
Battery Spot Welding Machine Specification
| Model No. | MD-AW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
