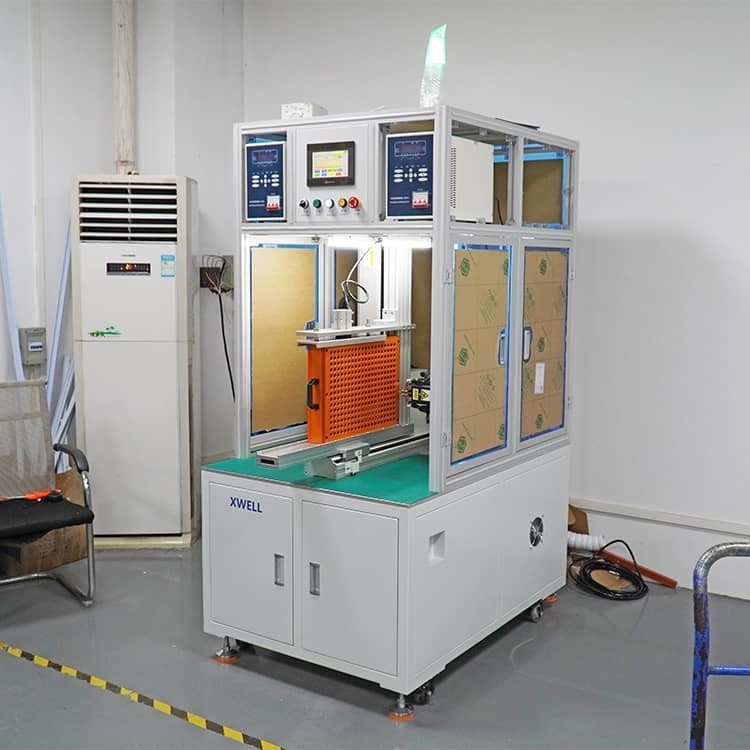

CNC Double Side Battery Pack Spot Welding Machine 5000A 8000A
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
|---|---|---|---|
| Pack Size: | X Direction: 26; Y Direction: 26 | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | CNC Battery Pack Spot Welding Machine,8000A Battery Pack Spot Welding Machine |
||
Product Description
CNC Double Side Battery Pack Spot Welding Machine
Designed for 18650, 26650... battery pack welding,like E-bike,scooter,and electro mobile battery pack welding.
5000A invert spot welding power supply. high quanlity welding effect. Servo motor driving.fast, stable welding.
Programmable welding process,can produce any shape battery pack.
Real-time welding effect monitoring warning for NG welding spot.
Programmable welding process,can produce any shape battery pack.
Real-time welding effect monitoring warning for NG welding spot.
Features:
6. Can monitor the welding current, current abnormal sound and light alarm
7. 10 custom welding specifications, can be flexibly called
8. With a 5-digit counter, counting the number of successful welding, can set the count alarm, prompting the repair of the welding pin
9. Self radio (RFI) and electromagnetic dry (EMI) protection.
10. Power head split design, pneumatic and foot pedal can be flexible with.
Designed for 18650, 26650... battery pack welding,like E-bike,scooter,and electro mobile battery pack welding.
5000A invert spot welding power supply. high quanlity welding effect. Servo motor driving.fast, stable welding.
Programmable welding process,can produce any shape battery pack.
Real-time welding effect monitoring warning for NG welding spot.
Programmable welding process,can produce any shape battery pack.
Real-time welding effect monitoring warning for NG welding spot.
Battery Spot Welding Machine Specification
| Model No. | MD-AW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
