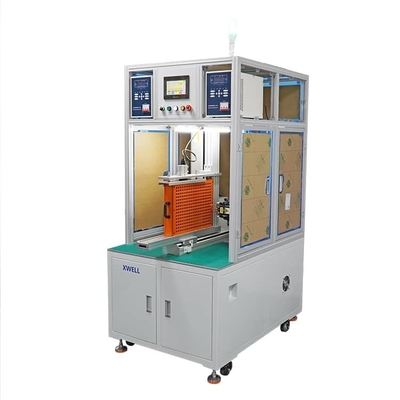

Double Sided Spot Welding Machine For Lithium Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Marketing Type: | Ordinary Product | Warranty: | 1 Year |
|---|---|---|---|
| Pack Size: | X Direction: 26; Y Direction: 26 | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | Double Sided Spot Welding Machine,Lithium Battery Pack Spot Welding Machine |
||
Product Description
Double Sided Spot Welding Machine For Lithium Battery Pack
This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.
Features:
1.High performance CPU control, fast welding speed, 1.5-2 times faster than the standard capacitor discharge welder, LCD display, graphic display of the current working status, Chinese commentary
2.The latest IGBT discharge control, adjustable welding pulse width (discharge time), the standard capacitor discharge welder width is fixed
3.Adjustable welding pulse width, small welding spatter, no discoloration of the welded joint
4. High-speed polarity switching function, adjustable welding pulse width. Consistent energy output for each weld. Ensures that both weld joints are consistent. Can be realized with (single) double pulse energy storage welding, reduce welding spatter
Battery Spot Welding Machine Specification
| Model No. | MD-AW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

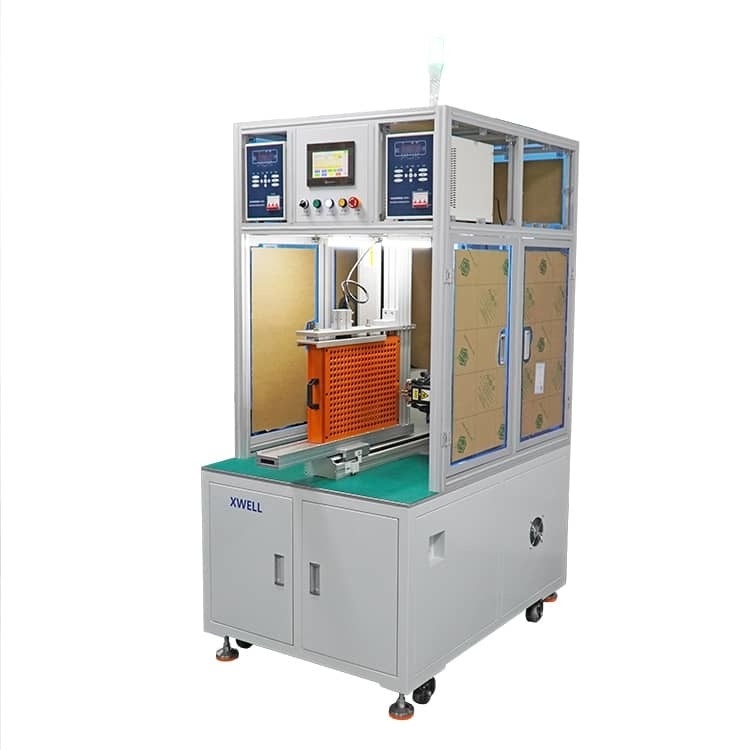

Double Side Spot Welding Machine Details
