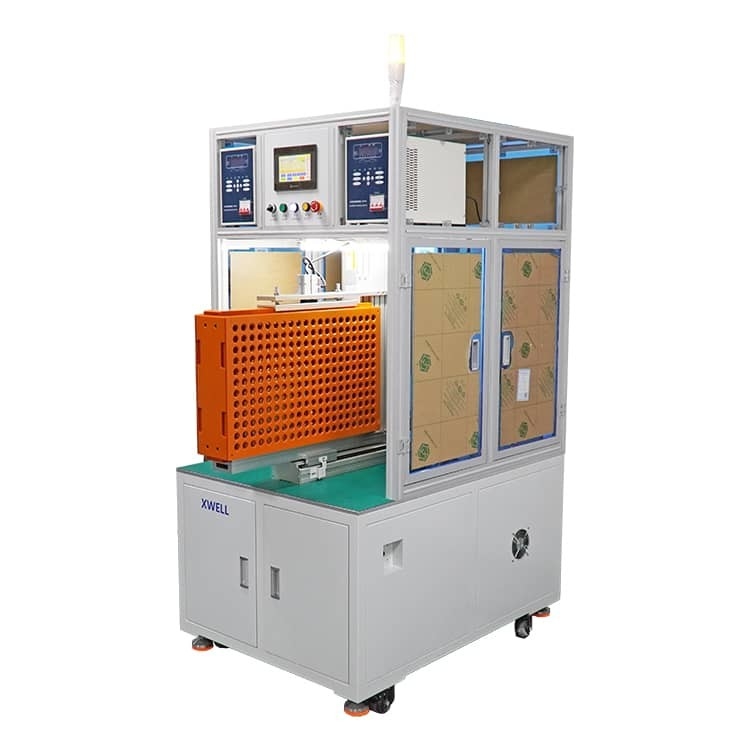

Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Pack Size: | X Direction: 26; Y Direction: 26 | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | 26650 Battery Spot Welding Machine,Cnc Battery Spot Welding Machine |
||
Product Description
Automatic Double Side Cnc 18650 26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line
Automatic Battery Pack Welding Machine
Designed for 18650, 26650... battery pack welding,like E-bike,scooter,and electro mobile battery pack welding. 5000A invert spot welding power supply. high quanlity welding effect. Servo motor driving.fast, stable welding.
Programmable welding process,can produce any shape battery pack.
Real-time welding effect monitoring warning for NG welding spot.
Equipment Features
- Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.
- Can store dozens process of different battery packs product, switching products without re-setting parameters.
- Can match a variety brand of spot welders.
Battery Spot Welding Machine Specification
| Model No. | MD-AW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
