Battery Pack Welding Machine

Numerical Control CNC Spot Welding Machine EV Cell Tab Welder For 18650 Battery Pack

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Numerical Control CNC Spot Welding Machine EV Cell Tab Welder For 18650 Battery Pack

Brand Name:	XWELL
Model Number:	MD-ADW
MOQ:	1pcs
Price:	USD 6000 - 9000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Applicable Industries:

Automatic Battery Welding Machine

Core Components:

PLC

Key Selling Points:

Automatic

Pack Size:

X Direction: 26; Y Direction: 26

Welding Current:

5000A 8000A

Voltage:

220V/380V(AC)

Power:

4000 W

Supply Ability:

100pcs per month

Highlight:

Numerical Control CNC Spot Welding Machine

18650 Battery CNC Spot Welding Machine

Product Description

Automatic Numerical Control EV Cell Double Sides Battery Tab Welder CNC Spot Welding Machine For 18650 Battery Pack

Features:
Support breakpoint start, automatic start, and manual start.
Cold solder joint and sealing off alarm.
Easy program, support matrix, array and point program, can store 99 group parameters.

	Welding needle abrasion alarm.
Build-in welding current monitor, can display real time welding current.
Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
Can be matched with the production line of lithium battery group.
Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.
Can store dozens process of different battery packs product, switching products without re-setting parameters.
Can match a variety brand of spot welders.

Application area:
With the corresponding fixture, machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Operation:

Setting the parameters of welding on the touch screen. (The same product only need to be set once)
Put the fixture with the battery pack on the quick clamping position.
Press the start button, machine automatically complete all welding actions.
machine sound to prompt operator replacement of new fixture (battery pack).

Battery Spot Welding Machine Specification

Model No.	MD-AW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	double-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa

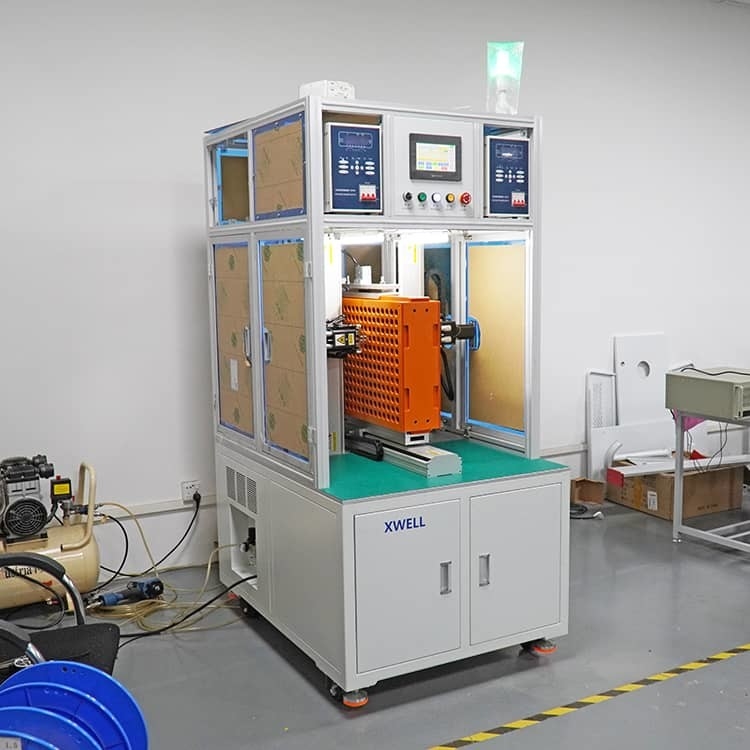

Double Side Spot Welding Machine Details

Numerical Control CNC Spot Welding Machine EV Cell Tab Welder For 18650 Battery Pack 0

Numerical Control CNC Spot Welding Machine EV Cell Tab Welder For 18650 Battery Pack 1
