Prismatic Square LFP Lithium Battery Cell Sorting Machine 8 Channel
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Cell: | Prismatic | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 Pcs/h |
| Test Parameter: | AC Internal Resistance, Open DC Voltage | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Lithium Battery Cell Sorting Machine,8 Channel Battery Cell Sorting Machine,Square Battery Cell Sorting Machine |
||
Product Description
Voltage And IR Tester 8 Channel Prismatic Square LFP Lithium Battery Cell Sorting Machine
The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to diffierent channels according to the setting.
Prismatic Battery Cell Sorting Machine Features
d.High degree of automation, hopper feeding and simple operation. It can test and match about 600 cells per hour, can effectively improve production efficiency and reduce production cost.
e.The performance data of the cell tested by the system adopts the database management mode, which is stored for a long time and has strong traceability. Cooperate with the data analysis function to conduct long-term monitoring and analysis of product performance and quality, so as to guide the improvement of R & D and improve the production process.
f.The industrial control computer collects data and automatically generates curves and bar charts. The system has the function of database, which can trace and export historical data.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |

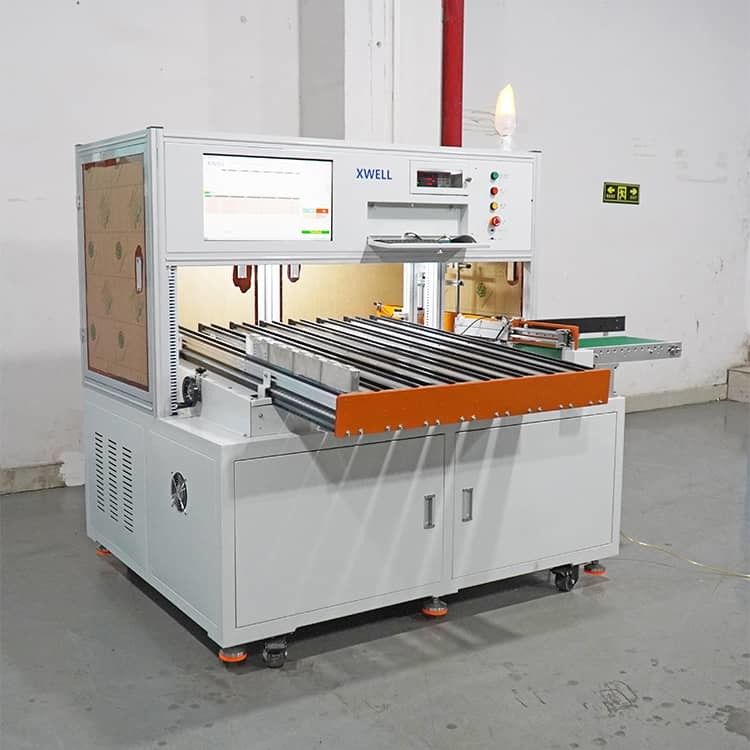

Prismatic Battery Cell Sorting Machine Details
