Dual Side 18650 Battery Spot Welding Machine Automatic 5000A
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Core Components: | Engine | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Key Selling Points: | Automatic | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | 18650 Battery Spot Welding Machine,5000A Battery Spot Welding Machine,Dual Side Automatic Spot Welding Machine |
||
Product Description
Double Side 18650 Battery Spot Welding Machine Battery Automatic Spot Welding Machine
Description:
MD-ADW is mainly used for welding the battery and the nickel strip in the cylindrical battery pack, and the welding tension between the battery and the nickel is ≥30N, suitable for spot welding lithium battery of the electric motorcycle,electric car, solar street lighting and electric tools. This equipment adopts high precision closed-loop motor, high precision guide rail, equipped with DC inverter welding power source, welding head with photoelectric system to real-time check nickel strip position, adjustable welding pressure, which ensure the battery welding strength, tidy uniform welds. Movement control cards embedded system + human-machine interface, easy operation, multi-function system with variety of programming model, can store Max 999 groups for editing different battery pack data. Fast switching,high automation, good stability.
Product Specification:
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

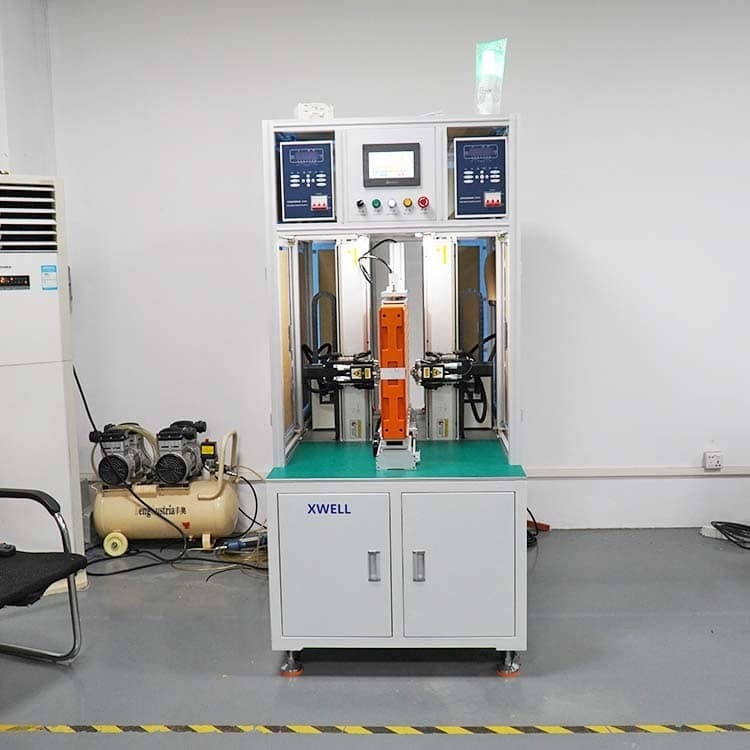

Double Side Spot Welding Machine Details
