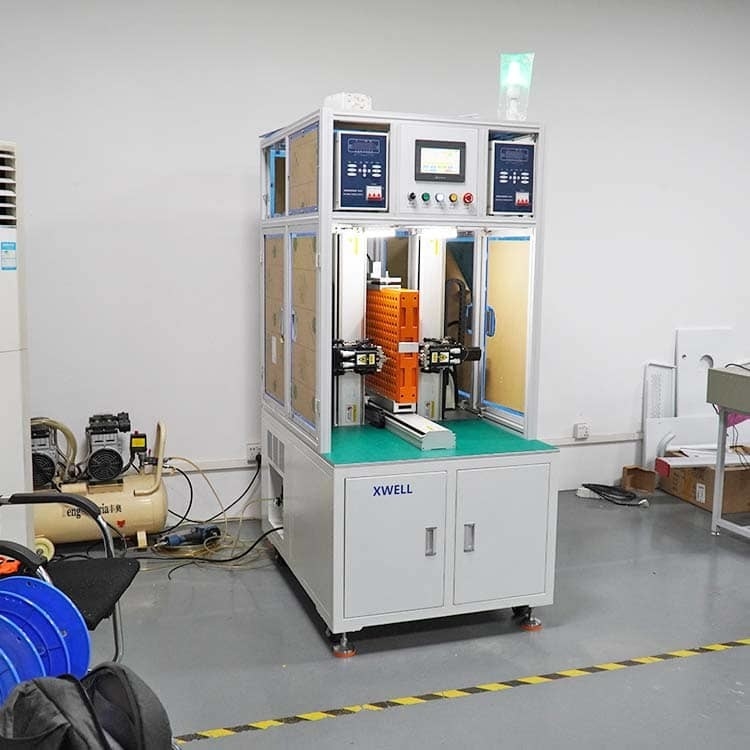

Double Side Automatic Spot Welding Machine For Li - Ion Battery Making
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant, Energy & Mining, Lithium Battery Pack |
|---|---|---|---|
| Marketing T: | Provided | Key Selling Points: | Automatic |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | Double Side Automatic Spot Welding Machine,220V Battery Automatic Spot Welding Machine |
||
Product Description
Double-Side Automatic Spot Welding Machine For Li-Ion Battery Making
Description:
1. For 18650 battery. Mobile power and other standardized production.
2 . Simple operating system, 7.5-inch color touch screen, user-friendly design, easy to understand.
3 .Control system: PLC programming control, with fault alarm system.
4 .Cooling device comes with solder pin to improve welding and prolong machine life.
Features:
5.Electromagnet device , battery pack detector, cylinder compression device , and service control system , etc , are installed to ensure battery pack is placed in right position and increase the welding accuracy.
6.A speedy 90-degree rotatable chuck is installed to move the battery pack with inconsisten direction welding spot The operating handles , CAD maps , multiple array calculations , portable driver insert port , partial area control , switchable screen Z-axis forward & backward movement , break-point virtual Swelding , battery pack detection & go features make the machine more user-friendly
7.Complete function , fit for mass welding production .
8.The pressing shaft is driven by a motor and a screw rod , which makes the replacement of products more convenient and the operation more user-friendly.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
