CE Automatic Spot Welding Machine For New Energy Vehicle Battery 32650 32140
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant, Energy & Mining, Lithium Battery Pack |
|---|---|---|---|
| Marketing T: | Provided | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | 32650 Battery Automatic Spot Welding Machine,Vehicle Battery Automatic Spot Welding Machine,32140 Battery Pack Welding Machine |
||
Product Description
Manufacturer 18650 26650 32650 32140 Battery Double Side Automatic Spot Welding Machine For New Energy Vehicle Battery
Description:
The MD-ADW Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise
Features:
1.For 18650 battery. Mobile power and other standardized production.
2 . Simple operating system, 7.5-inch color touch screen, user-friendly design, easy to understand.
3 .Control system: PLC programming control, with fault alarm system.
4 .Cooling device comes with solder pin to improve welding and prolong machine life.
5 .X- and Y-axis ball screw design, full servo motor driven and ball screws power transmission to ensure welding accuracy.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

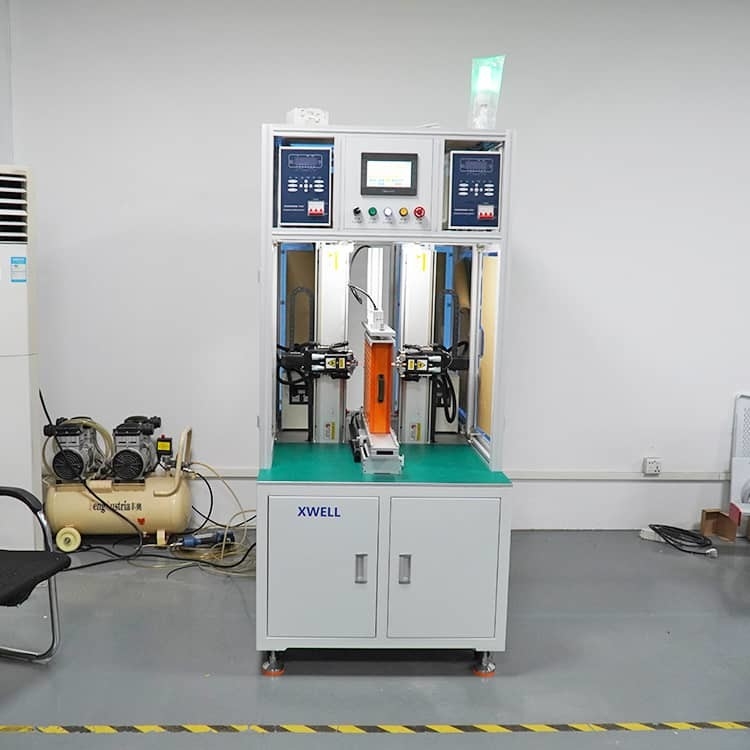

Double Side Spot Welding Machine Details
