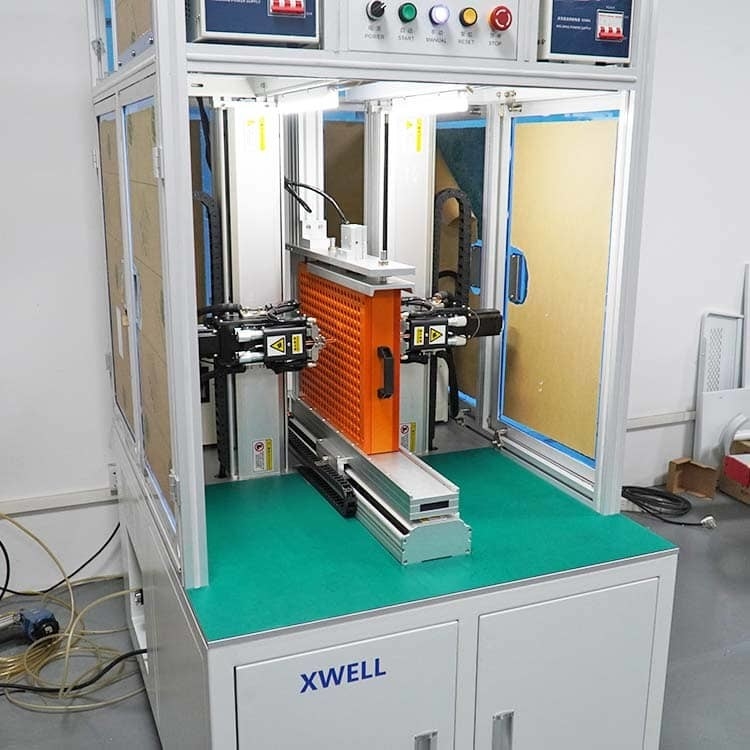

Cylindrical Battery Pack CNC Spot Welding Machine PLC Core
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Brand Name: | XWELL | Applicable Industries: | Batterry Machine |
|---|---|---|---|
| Core Components: | PLC | Key Selling Points: | Automatic |
| Pack Size: | X Direction: 26; Y Direction: 26 | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | Cylindrical Battery Pack CNC Spot Welding Machine,PLC CNC Spot Welding Machine,PLC Battery Pack Welding Machine |
||
Product Description
Automatic 18650/26650/32650 Cylindrical Battery Pack Double Sides CNC Spot Welding Machine For Battery Assembly
Description:
Features:
This machine is used for 18650/26650/32650 cylindrical battery pack automatic spot welding, it can weld both side together with high speed and good effect.
1. Support breakpoint start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
