18650 21700 Cylindrical Automatic Battery Pack Spot Welder Stepper Servo Motor Driving Mode
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Marketing Type: | Ordinary Product | Core Components: | PLC, Engine |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | 18650 Cylindrical Battery Pack Spot Welder,21700 Battery Pack Spot Welder |
||
Product Description

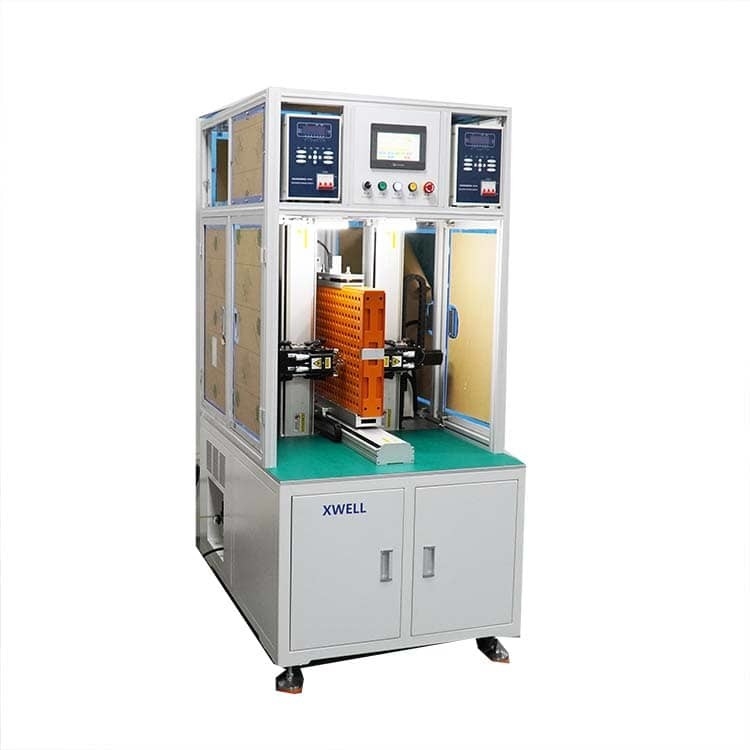

18650 21700 Cylindrical Cell Pack Double Side Automatic Battery Pack Spot Welding Machine
Description:
Transistor spot welding machine welding current rises very fast, can complete the welding process in a short time, the welding heat affected zone is small, and the welding process has no spatter. It is most suitable for ultra-precision welding, such as thin wires, such as button battery connectors, Small contacts and metal foils of relays
Features:
1.This full-automatic machine is designated for welding in a consistent direction .
2.Its double-sided simultaneous welding design improves the work efficiency without the necessity to make sacrifice on the performance .
3.Max . compatible battery pack dimension: 600 x 400mm , with height between 60-70mm .
4.Automatic Needle Compensation: left and right sides consist of 4 detection switches , 8 in total , to detect the positions and control the needles . Needle repair ;Needle grinding alarm; Staggered Welding Function
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
