Efficiency Lithium Battery Pack Welder Battery Automatic Double Side Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Condition: | New | Core Components: | Motor, Pressure Vessel, Gear |
|---|---|---|---|
| Usage: | Battery Spot Welding | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | Efficiency Lithium Battery Pack Welder,Double Side Lithium Battery Pack Welder |
||
Product Description
Xwell Lithium Battery Pack Welder Battery Automatic Double Side Spot Welding Machine
Product features:
1. Inverter DC welding power supply is adopted, which has stable performance, fast welding speed and constant current working mode, so as to eliminate the unstable factors of welding current for a long time.
2. It has its own welding current monitoring system, which can monitor the welding current in real time.
3. The spot welding power supply has the function of false welding alarm, which can directly communicate with the motion controller, record the false welding position, and predict and remind the replacement of welding needle.
4. The welding efficiency is about 4 times that of labor, with high stability, labor saving, time saving and cost saving.
Application area:
With the corresponding fixture, machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Operation:
* Setting the parameters of welding on the touch screen. (The same product only need to be set once)
* Put the fixture with the battery pack on the quick clamping position.
* Press the start button, machine automatically complete all welding actions.
* machine sound to prompt operator replacement of new fixture (battery pack).
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

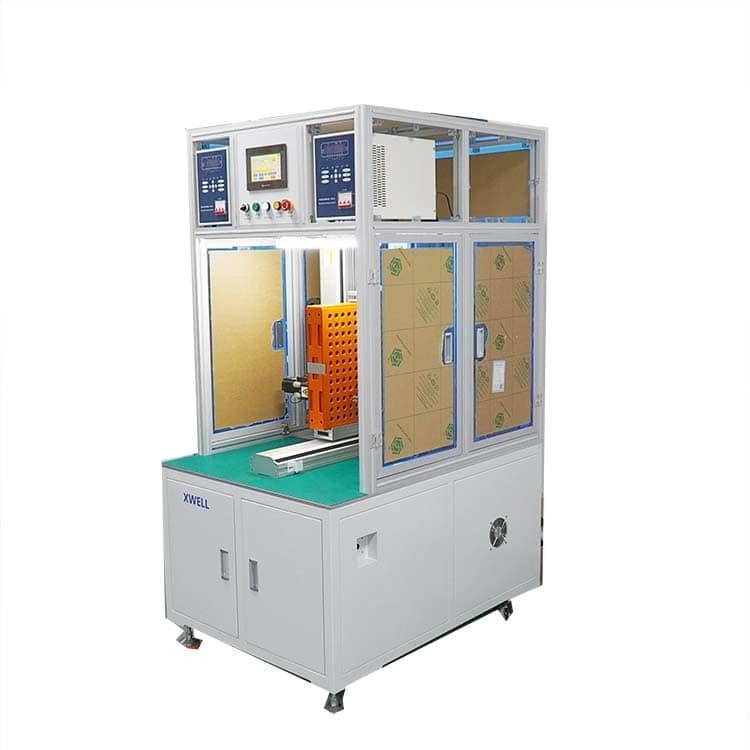

Double Side Spot Welding Machine Details
