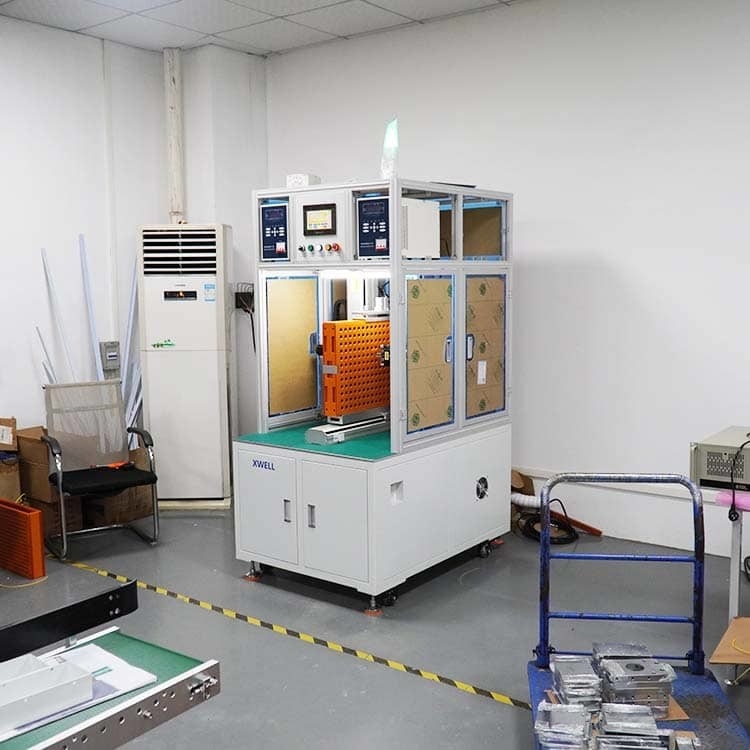

0.02mm Positioning Battery Pack Welding Machine 18650 21700 Battery Pack Spot Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | MD-ADW | Warranty: | 1 Year |
|---|---|---|---|
| Nickel Welding Thickness: | 0.1mm-0.3mm | Positioning Accuracy: | ±0.02mm |
| Weight: | 400KG | Welding Current: | 5000A 8000A |
| Power: | 4000 W | Voltage: | 220V/380V(AC) |
| Highlight: | 0.02mm Positioning Battery Pack Welding Machine,21700 Battery Pack Welding Machine |
||
Product Description
Automatic AA AAA Lithium Ion Battery Pack Double Sides Spot Welder Welding Machine
Application area:
The ADW5000 Manual Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply(also customize 8000A), Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...
Features:
5. Easy to change from low current to high current, suitable for precision welding.
6. Can set the upper and lower limits of the current, simply determine the quality of welding is good or not.
7. The welding current increases with the welding time to ensure the welding result.
Battery Spot Welding Machine Specification
| Model No. | MD-ADW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | duoble-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details:
