Automatic AA AAA Lithium Ion Battery Pack Welding Machine Double Sides Spot Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Core Components: | PLC | Key Selling Points: | High Safety Level |
|---|---|---|---|
| Nickel Welding Thickness: | 0.1mm-0.3mm | Positioning Accuracy: | ±0.02mm |
| Weight: | 400KG | Welding Current: | 5000A 8000A |
| Power: | 4000 W | Voltage: | 220V/380V(AC) |
| Highlight: | Lithium Ion Battery Pack Welding Machine,AAA Battery Pack Welding Machine |
||
Product Description
Automatic AA AAA Lithium Ion Battery Pack Double Sides Spot Welder Welding Machine
Application area:
With the corresponding fixture, MD-5000 can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc
Features:
1. Suitable for 18650, 26650…battery pack welding, like E-bike, scooter, and electromobile battery pack welding.
2. Induction load voltage, feedback mode to control the constant voltage, to achieve high-quality welding.
3. PRE HEAT, MAIN HEAT power mode, preheats before welding, to ensure a stable welding quality.
4. To maintain the continuity of energy density, welding time is short, reduce the base metal deformation and discoloration.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

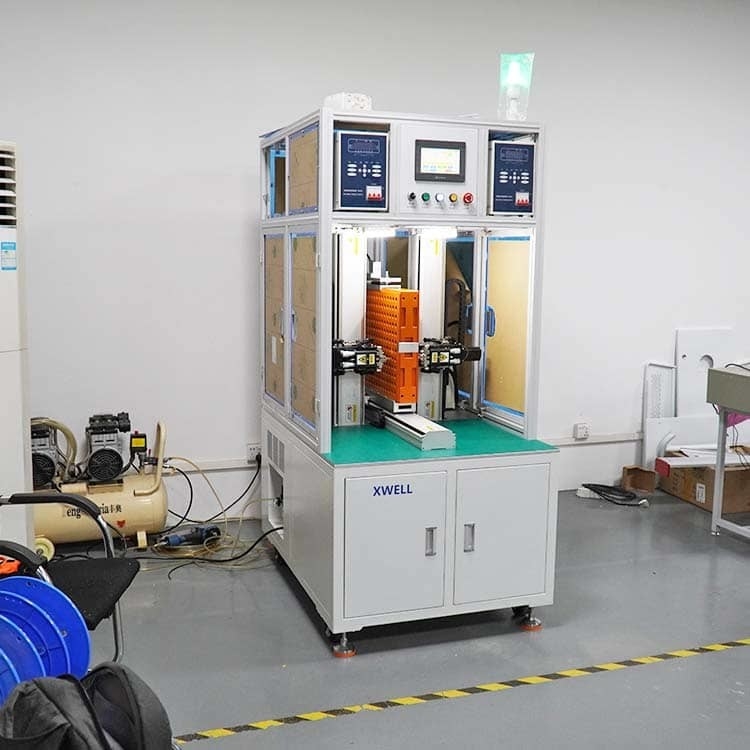

Double Side Spot Welding Machine Details:
