0.1mm Nickel Thickness Automatic Spot Welder Battery Pack Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Nickel Welding Thickness: | 0.1mm-0.3mm | Positioning Accuracy: | ±0.02mm |
|---|---|---|---|
| Weight: | 400KG | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | 0.1mm Nickel Thickness Automatic Spot Welder,Battery Pack Automatic Spot Welder |
||
Product Description
Automatic Spot Welder Double Sides Battery Pack Spot Welding Machine
Product features:
1. It has its own welding current monitoring system, which can monitor the welding current in real time.
2. The spot welding power supply has the function of false welding alarm, which can directly communicate with the motion controller, record the false welding position, and predict and remind the replacement of welding needle.
3. The welding efficiency is about 4 times that of labor, with high stability, labor saving, time saving and cost saving.
Power supply parameters:
1. Equipment power supply: 3phase ~ 380V ± 10% / 50Hz ± 10%;
2. Operating environment: A: Please avoid using the equipment in places with high temperature, high humidity, vibration or impact, metal powder and welding spatter, and pay attention to the control of ambient temperature around the equipment; B: The equipment must be grounded and disconnected from the personnel grounding wire.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

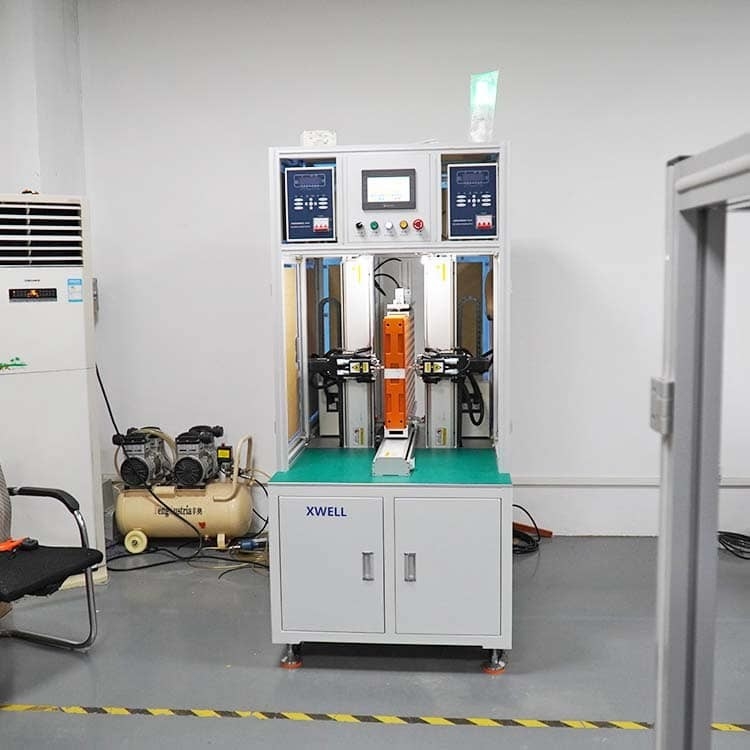

Double Side Spot Welding Machine Details:
