Description:The Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.

Advantages:

1. Induce load voltage, control voltage by feedback, and realize high quality welding.

2. Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.

3. Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal. (Welding time controlled in microseconds, continuous output mode)

4. Easy to change from low current to high current, suitable for precision welding.

5. The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.

6. The welding current rises with the time of electrification to ensure the welding effect.

Battery Spot Welding Machine Specification

Model No.	MD-ASW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	double-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa

Double Side Spot Welding Machine Details

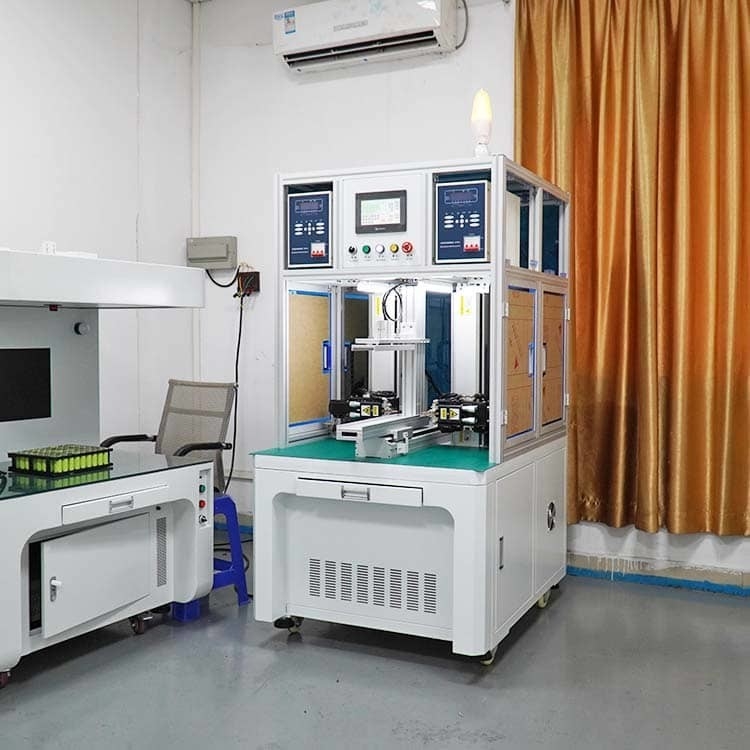

Automatic Rotary Head Spot Welder Double Sides Battery Pack Spot Welding Machine With DC Inverter 0

Automatic Rotary Head Spot Welder Double Sides Battery Pack Spot Welding Machine With DC Inverter 1
