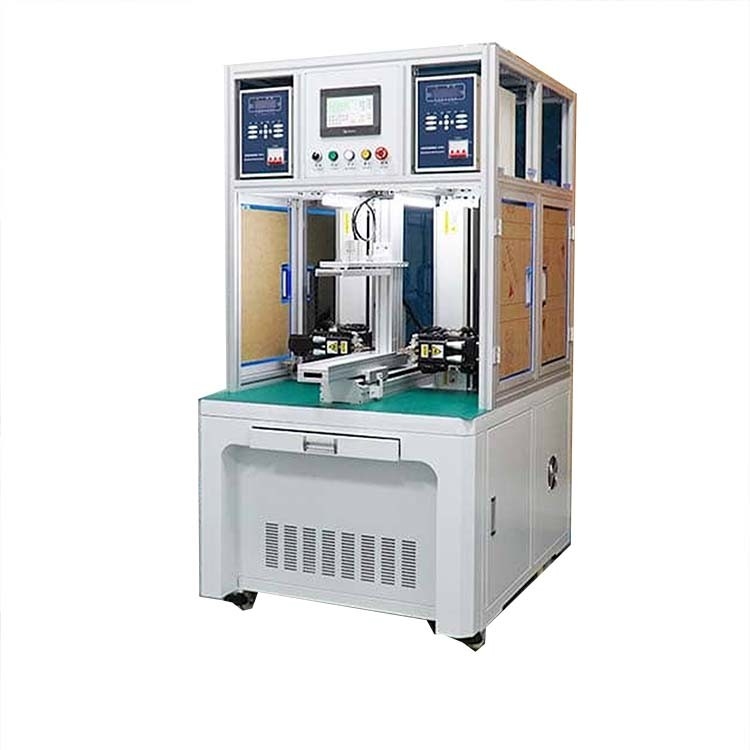

Automatic Double Side Pack Welding Machine For 18650 21700 32650 Cylindrical Cell

Brand Name: XWELL
Model Number: MD-ADW
MOQ: 1pcs
Price: USD 6000 - 9000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Marketing Type:
18650 Pack Machine
Warranty Of Core Components:
1 Year
Brand Name:
XWELL
Pack Size:
X Direction: 26; Y Direction: 26
Key Selling Points:
Automatic
Welding Current:
5000A 8000A
Voltage:
220V/380V(AC)
Power:
4000 W
Supply Ability:
100pcs per month
Highlight:

Automatic Double Side Pack Welding Machine

,

32650 Cylindrical Cell Pack Welding Machine

Product Description

Automatic Double Side Pack Welding Machine For 18650 21700 32650 Cylindrical Cell



Product Specification:

double-side automatic spot welding machine supports break point start and is equipped with a transistor 5000A/8000A power supply, which can weld pure nickel sheets below 0.3 mm and nickel-plated steel below 0.3. Nickel sheets need to be bumped for welding. Double-sided automatic welding, high efficiency. Simple programming, supports any point programming and array programming, graphics import, and can store 99 groups of programming files. Welding needle replacement forecast reminder, the welding head adopts water-cooling circulation to dissipate heat, which can effectively reduce the welding needle loss and improve the welding effect. Self-contained welding current monitoring system, which can monitor welding current, with rosin joint alarm function, can monitor welding in real time.





Working process
The double-sided automatic spot welding machine consists of working power supply, working platform, servo motor, operating system and so on.
Manually put the cell into the fixture, place the nickel sheet; push it into the automation platform, and then set the relevant
parameters, array, etc., the welding work can be realized.


Battery Spot Welding Machine Specification



Model No. MD-ADW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply double-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa



Double Side Spot Welding Machine Details

Automatic Double Side Pack Welding Machine For 18650 21700 32650 Cylindrical Cell 0

Automatic Double Side Pack Welding Machine For 18650 21700 32650 Cylindrical Cell 1Automatic Double Side Pack Welding Machine For 18650 21700 32650 Cylindrical Cell 2
