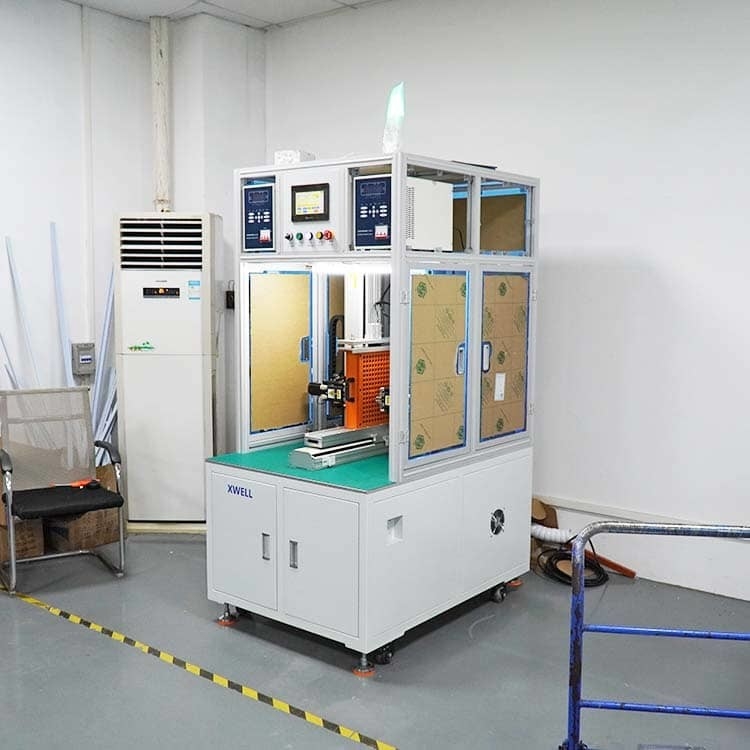

CNC 18650 Cylindrical Battery Spot Welding Machine For Cell Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Product Name: | Battery Spot Welder | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Pack Size: | X Direction: 26; Y Direction: 26 | Key Selling Points: | Automatic |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | Cylindrical Battery Spot Welding Machine,CNC 18650 Battery Spot Welding Machine |
||
Product Description
Automatic Double Sided CNC 18650 Cylindrical Battery Spot Welding Welder Machine For Battery Cell Pack
Product Specification:
Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations
1. Support break point startup, automatic startup and manual startup mode conversion.
2. Simple programming, support any point programming and array programming, realize skip spot welding, fast switching between single point and double point modes, optimize spot welding path, improve efficiency, save 99 groups of programming files on local disk, and import graphics through USB interface.
3. It can be divided into super operator, maintenance, administrator, etc.
4. Inverter DC welding power supply is adopted, which has stable performance, fast welding speed
Battery Spot Welding Machine Specification
| Model No. | MD-ADW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
