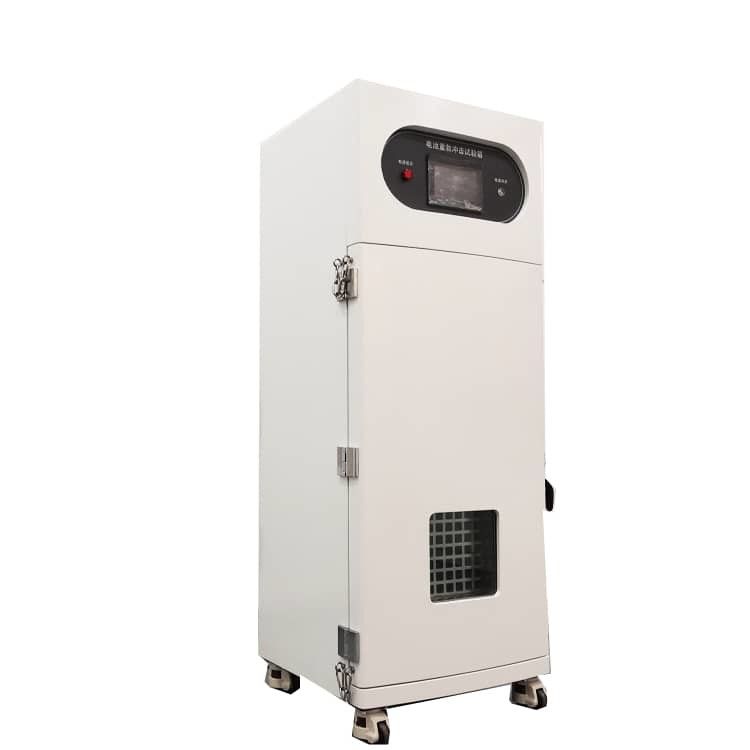

Electronic Battery Heavy Impact Testing Machine New Energy Battery Building Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-6010C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Warranty: | 1 Year | Power: | Electronic |
|---|---|---|---|
| Impact Method: | ±5mm | Height Display: | 0~1000mm |
| Place Of Origin: | Guangdong, China | Display: | Touch Screen |
| Weight: | 90Kg | ||
| Highlight: | Electronic Battery Heavy Impact Testing Machine,Energy Battery Heavy Impact Testing Machine |
||
Product Description
Battery Heavy Impact Testing Machine New Energy Battery Building Tester
Introduction:
Battery weight impact testing machine After the battery is fully charged according to the test method of 4.5.1, install the battery on the surface of the platform, place a metal rod with a diameter of 1.58mm±0.2mm horizontally on the upper surface of the geometric center of the battery, and use a metal rod with a mass of 9.1kg±0.1kg The heavy object falls freely from a height of 610mm±25mm and hits the surface of the battery with the metal rod, and observe it for 6 hours.
Meet standard:
GB31241-2014
SJ/T 11169-1998(UL1642:1995)
GB/T 18287-2013
UN 38.3
QB/T 2502-2000
GB/T 8897.4-2008 (IEC 60086-4:2007)
GB/T 21966-2008 (IEC 62281:2004) (Safety requirements for primary batteries and batteries in transportation)
Equipment features:
Automatically lift the weight, and automatically stop when it is adjusted to the required height.
Specification:
| NO | Item | Parameter |
| 1 | Weight of falling ball | Parameter |
| 2 | lmpact height | 9.1Kg±0.1Kg |
| 3 | Height display | 0~1000mm |
| 4 | Height error | display through the controller, accurate to1mm |
| 5 | impact method | ±5mm |
| 6 | Visual window | release the falling ball after raising it to a certain height, and the falling ball will fall freelyin the vertical direction,without tilting or shaking |
| 7 | Upper and lower impact surface | 250mm*200mm |
| 8 | Box door | stainless steel plate |
| 9 | Outer box materia | single door double door, open temperedcold-rolled plate paint treatment, thickness 1.5mm |
| 10 | Exhaust outlet | located on the back of the box, diameter 150mm, can be connected to anexternal exhaust fanconvenient for externallaboratoryhigh-power exhaust fan |
| 11 | Inner box materia | #201 stainless steel, thickness 1.2mm, 1/3 with Teflon tape, high temperature resistance anti-corrosion, insulation easy to clean |
| 12 | Horizontal diameter | 15.8+0.2mm (5/8 inch) steel rod (placed vertically in the middle of thebattery, heavyobjects fall on the steel rod, and thesteel rod remains parallel to the bottom surface of the battery) |
