Lithium Ion Battery Washing Test Machine 850r/Min Adjustable
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-6011 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Test Barrel Depth: | 1-850r/min Adjustable | Test Time: | 0-9999H/M/S Adjustable |
|---|---|---|---|
| Brand: | XWELL | Model: | XW-6011 |
| Test Barrel Diamete: | 650mm | Inner Box Materia: | SUS#304 Stainless Steel |
| Power: | Electronic | ||
| Highlight: | Lithium Ion Battery Washing Test Machine,850r/min Battery Washing Test Machine,Adjustable Battery Washing Test Machine |
||
Product Description

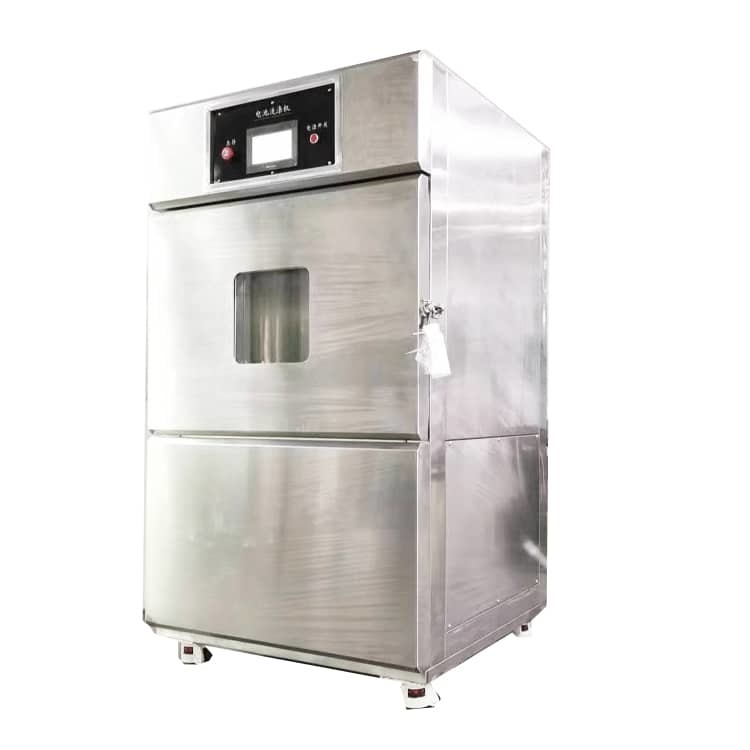

XWELL Laboratory Battery Washing Tester Test Machine For Lithium-Ion Battery
Introduction:
1. lon battery pack for handheld electronic products
2. Battery packs for portable electronic products that may becarried or used in pockets
3. Battery packs for other portable electronic products that can be carried in pockets.
4. Washing test of handheld electronic products, etc. with non-user-replaceable batteries/battery packs
Meet standard:
GB31241-2014
Speicification:
| NO | Item | Parameter |
| 1 | Control mode | PLC touch screen control |
| 2 | Drive mode | Servo motor drive |
| 3 | Solution temperature range | room temperature "80 C (adjustable), common temperature is 45±2℃ |
| 4 | Outer diameter of test turntable | 500+10mm |
| 5 | Test barrel diamete | 650mm |
| 6 | Test barrel depth | 600mm |
| 7 | Turntable speed | 1-850r/min adjustable |
| 8 | Inner box materia | SUS#304 stainless steel |
| 9 | Outer box material | cold-rolled steel plate paint treatment |
| 10 | Test time | 0-9999H/M/S adjustable |
| 11 | Temperature control mode | P.I.D control |
| 12 | Washing solution | configure a solution with a pH value of 11.0+0.1 (NaOH solution with a mass fractionof 0.004% can be used), and heat the solutionto(45±2)℃ |
| 13 | Dimensions | 1200x1150x1880 mm (width x depth x height) |
| 14 | Power supply | AC220V |
| 15 | Power | 6KW |
