Laboratory Lithium Ion Battery Washing Test Machine PLC Touch Screen Control

Brand Name:	XWELL
Model Number:	XW-6011
MOQ:	1 PCS
Price:	USD3000-5000/PCS
Packaging Details:	Wooden box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Test Barrel Depth:

1-850r/min Adjustable

Test Time:

0-9999H/M/S Adjustable

Brand:

XWELL

Model:

XW-6011

Test Barrel Diamete:

650mm

Inner Box Materia:

SUS#304 Stainless Steel

Power:

Electronic

Supply Ability:

100 pcs per month

Highlight:

Laboratory Battery Washing Test Machine

Lithium Ion Battery Washing Test Machine

PLC Battery Washing Test Machine

Product Description

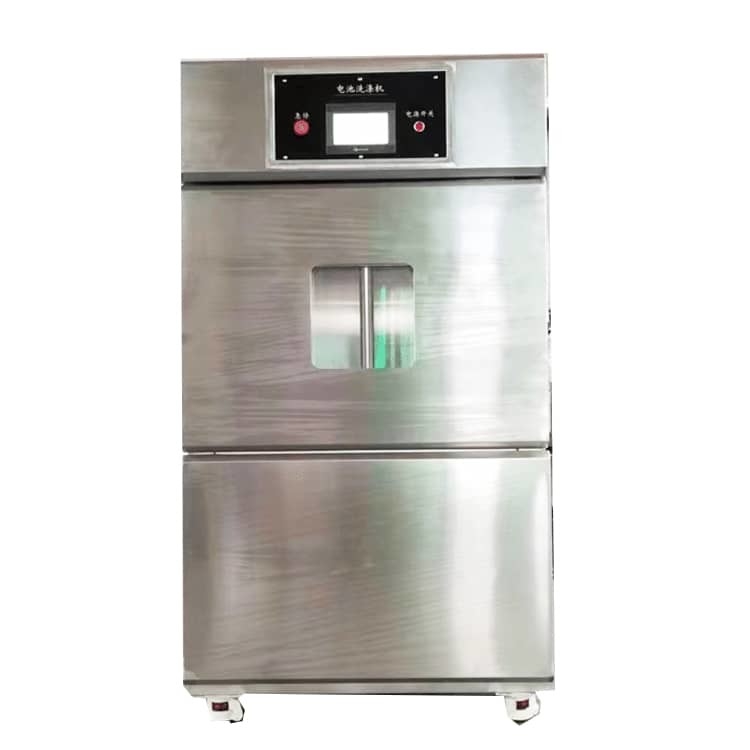

XWELL Laboratory Battery Washing Tester Test Machine For Lithium-Ion Battery

Introduction:

The battery washing test frame is equipped with a test box, the lowerpart of the test box is equipped with a washing box The test box isequipped with arotating award, the side of the test box is equipped with a drying device, the input end of the rotating award is connected to the drive motor, the washing box is a box with a liftable structure the washing box rises and the upper edge of the test box to form asealed cavity, the shelf is equipped with a control panel and a water tank the washing box is conducted through the pipeline and the water tank and its structural design is scientific, which solves the battery washing completely by manual step-by-step, greatly shortening the test time. lmproved test accuracy, saving time and effort. This testing machine issuitable for the following cells or battery packs

Meet standard:

GB31241-2014

Speicification:

NO	Item	Parameter
1	Control mode	PLC touch screen control
2	Drive mode	Servo motor drive
3	Solution temperature range	room temperature "80 C (adjustable), common temperature is 45±2℃
4	Outer diameter of test turntable	500+10mm
5	Test barrel diamete	650mm
6	Test barrel depth	600mm
7	Turntable speed	1-850r/min adjustable
8	Inner box materia	SUS#304 stainless steel
9	Outer box material	cold-rolled steel plate paint treatment
10	Test time	0-9999H/M/S adjustable
11	Temperature control mode	P.I.D control
12	Washing solution	configure a solution with a pH value of 11.0+0.1 (NaOH solution with a mass fractionof 0.004% can be used), and heat the solutionto(45±2)℃
13	Dimensions	1200x1150x1880 mm (width x depth x height)
14	Power supply	AC220V
15	Power	6KW
